WK160 Waterborne Alkyd Coatings

WH-WK160 uses water-based alkyd resin as film-forming material and water-based anti-rust pigment with anti-corrosion effect as filler. This product has high solid content and low VOC content at construction viscosity, and self-crosslinks at room temperature, thus having excellent appearance and anti-corrosion performance.

Inquiry Now
Name *
Email *
Enter enquiry subject *
Message *
WhatsApp
SKU: WK160 Waterborne Alkyd Coatings Category: Tags: ,
Description

Overview

WH-WK160 is a waterborne coating formulated with waterborne alkyd resin as the film-forming substance and water-based anti-rust pigments with corrosion protection as fillers. Characterized by high solid content at application viscosity and low VOC content, this product undergoes ambient-temperature self-crosslinking, delivering excellent appearance and corrosion resistance.

Product Features

  • Contains bio-based ingredients
  • Extremely low VOC content
  • Non-flammable and non-explosive, ensuring safety and environmental friendliness
  • Ambient-temperature self-crosslinking, yielding hard and wear-resistant film
  • Excellent corrosion protection performance
  • Bright film with good decorative properties

Recommended Applications

  • Anticorrosion for steel structures
  • Decoration and anticorrosion for modified vehicles and other transportation tools
  • Decoration and anticorrosion for mechanical equipment

Technical Parameters

ItemSpecification
Paint TypeWaterborne alkyd resin; anti-rust pigments
ColorCustomizable as per client requirements
Surface FinishSmooth surface
GlossCustomizable as per client requirements
Mixing RatioOne-component system
DensityApproximately 1.1–1.3 kg/L
Volume Solids Content>40% (theoretical value)
Theoretical Coverage10 m²/L (calculated at 40μm dry film thickness)
Single Film ThicknessWet film: 100μm; Dry film: 40μm
Application MethodAirless spraying, air spraying
Nozzle Size (Airless)0.43–0.58 mm
Outlet Pressure (Airless)8 MPa
DiluentDeionized water
CleanerDeionized water
VOC Content<150 g/L
Drying TimeTouch-dry: 30–60 minutes (23℃; 50% relative humidity)
Full Curing Time7 days (23℃)
Recoating IntervalMinimum: 4 hours (23℃)
Recommended PrimerNone
Environmental TemperatureMin. 5℃, Max. 40℃. Avoid application under temperatures <5℃ or relative humidity >85%. Substrate temperature should be 3℃ above dew point.
Packaging, Storage & Shelf Life20 kg packaging. Store in accordance with national regulations. Keep in a cool, well-ventilated place away from excessive heat. Ensure tightly sealed containers. Shelf life: 6 months.

Application Guidelines

Surface Preparation
WH-WK160 is designed for direct application on steel surfaces pretreated by sandblasting to Sa2.5 grade in accordance with Swedish standard SIS055900. All surfaces must be free of grease, moisture, or other contaminants before sandblasting. Contact our company for any questions.

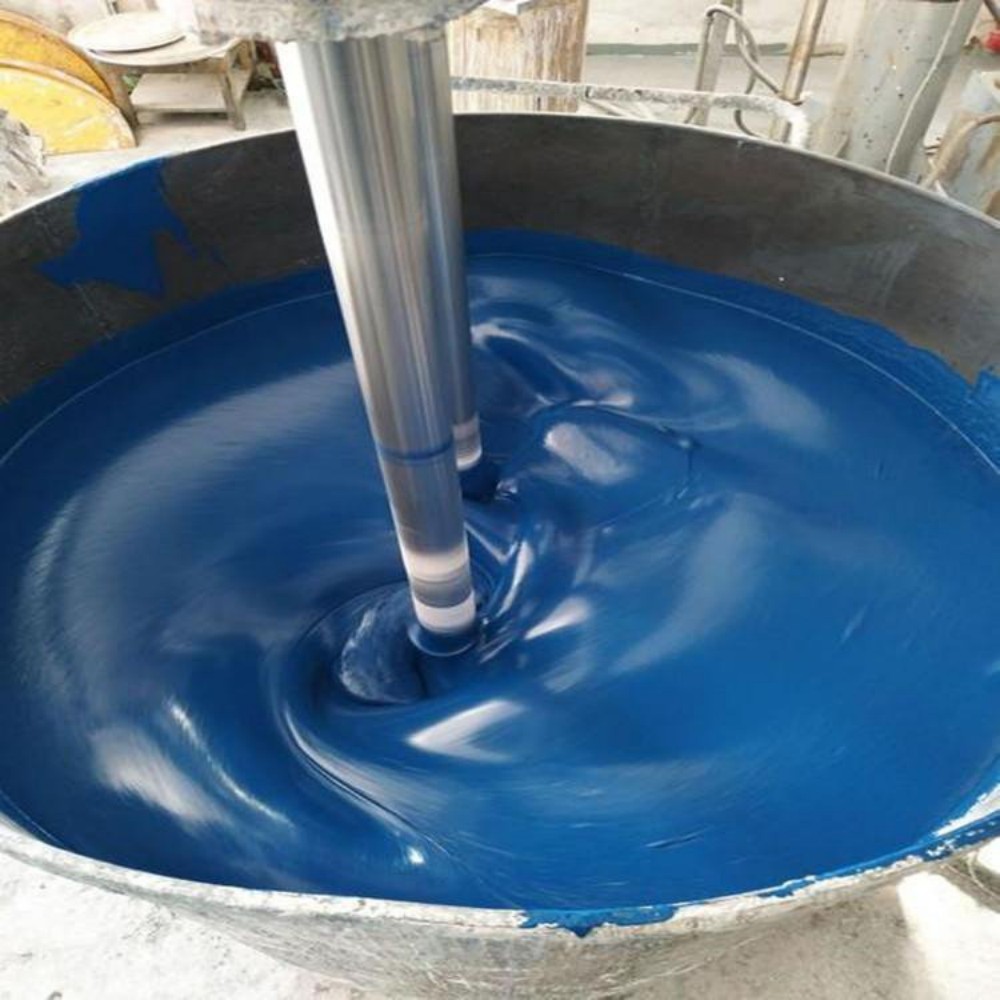

Mixing and Dilution
WH-WK160 should be stirred before use. Stir the base material for no more than 5 minutes until smooth and uniform. Dilution is generally not required or recommended, as excessive dilution may adversely affect application and film performance. A variable-speed electric stirrer is recommended.

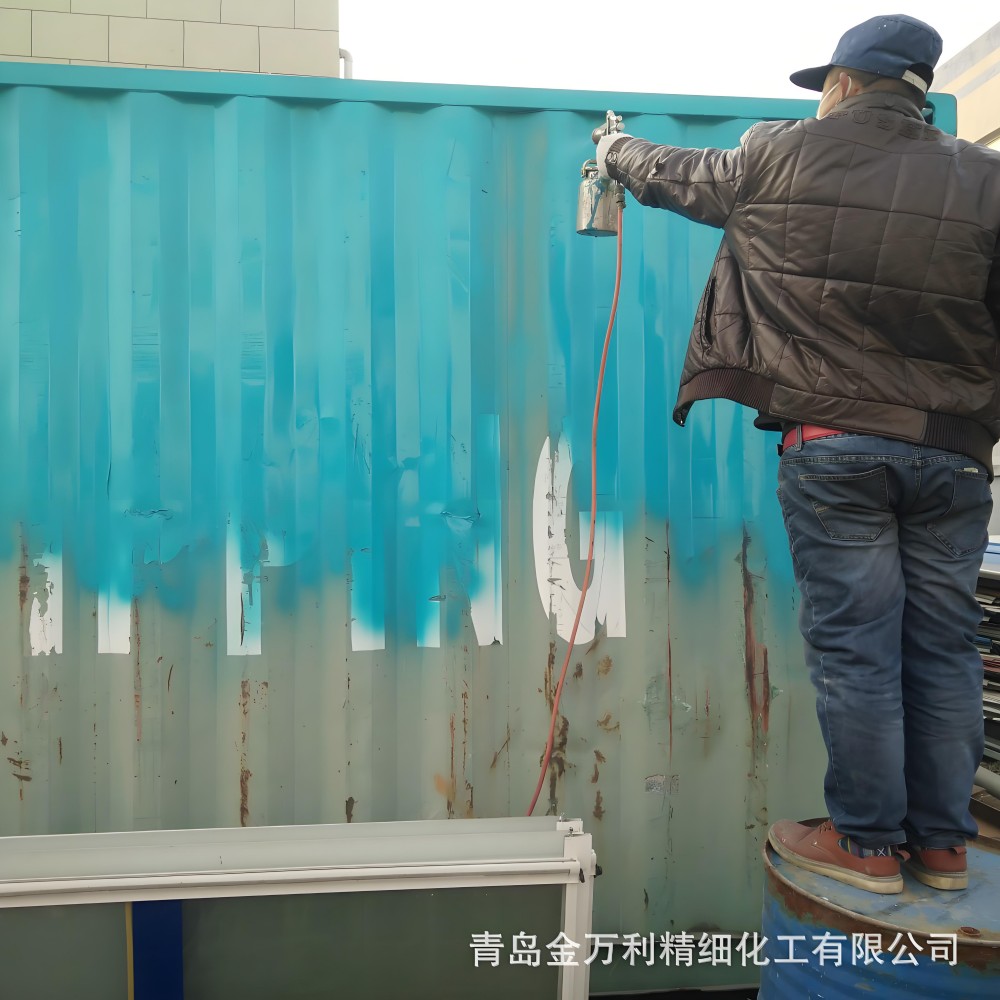

Application
WH-WK160 can be applied by traditional spraying or airless spraying. When using airless equipment, a Graco 30:1 pump with a nozzle size of 0.43–0.58 mm is recommended to ensure good material flow. To achieve optimal coating performance, ensure equipment and fluid lines are clean and free of water and solvents, and maintain proper and uniform film thickness. A spray angle of 40°/70° is recommended. For roller application, use new short-fine-hair rollers.

Safety Measures

  • Warning: May cause eye and skin irritation. Vapors may cause respiratory irritation in sensitive individuals. May cause skin allergic reactions. Avoid inhaling vapors. Do not contact eyes or skin.
  • Use protective equipment for eyes, ears, and skin. Wear a suitable respirator to prevent potential respiratory irritation.
  • Thoroughly wash skin with water after use. Consult a doctor if discomfort occurs.
  • Wash clothing before reuse. If breathing stops, perform mouth-to-mouth resuscitation and seek medical attention immediately.
  • In case of eye contact, flush with 清水 (clean water) for at least 15 minutes and seek immediate medical care.

Declaration

The information listed in this document is reliable. Each value is theoretically calculated from the product formulation. Upon request, our company can provide internal standard measurement methods for the data provided above. Since the conditions of use are beyond the manufacturer’s control, this information is not provided as a guarantee. The product is intended for professional use only. For any questions, please contact our company.

Contact:

Wanhua Energysav Science & technology Group Co.,Ltd
Address: No. 56 Taiyuan Road, Yantai, Shandong, China
Fax: 400-059-1116 | Tel: +86-17761309662 | Postal Code: 264006
