Cable Fire Retardant Coating DL-WH

DL-WH cable fireproof coating is an advanced water-based intumescent coating formulated with terpolymer emulsion, flame retardants, and plasticizers. Designed specifically for wires and cables, it offers superior fire resistance and environmental compliance. representing an advanced solution in the industry.

Product Overview

Key Features

High Expansion Ratio: Forms a thick insulating char layer under fire exposure. ensuring effective flame retardancy.
Eco-Friendly: Ultra-low VOC, odorless, and water-based. and compliant with green construction standards.
Thin & Flexible: Maintains cable flexibility without cracking. suitable for complex cable layouts.
Multi-Protection: Combines flame retardancy with electrical insulation and corrosion resistance.

Applications

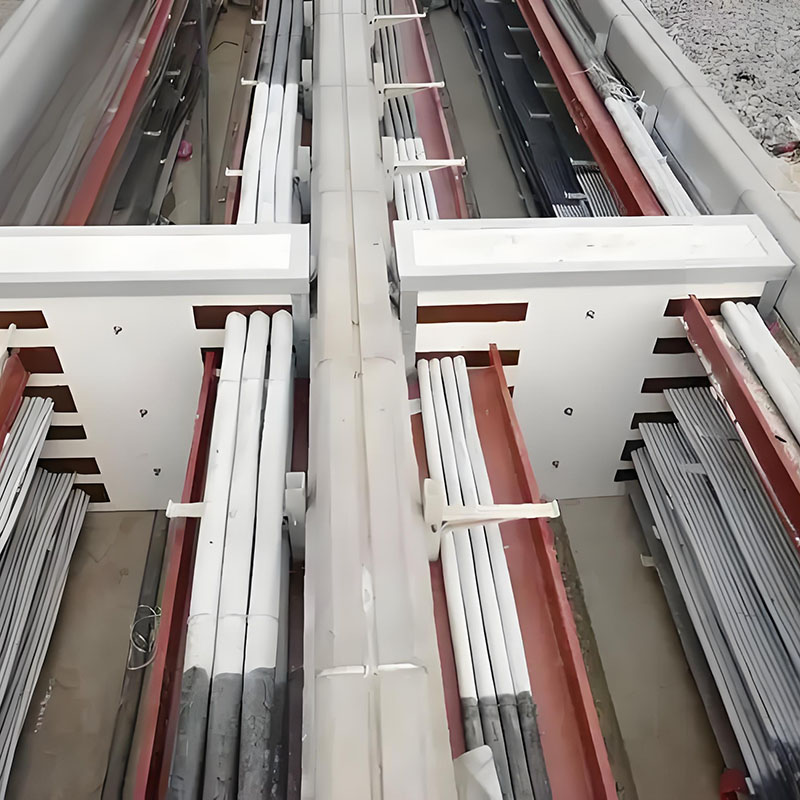

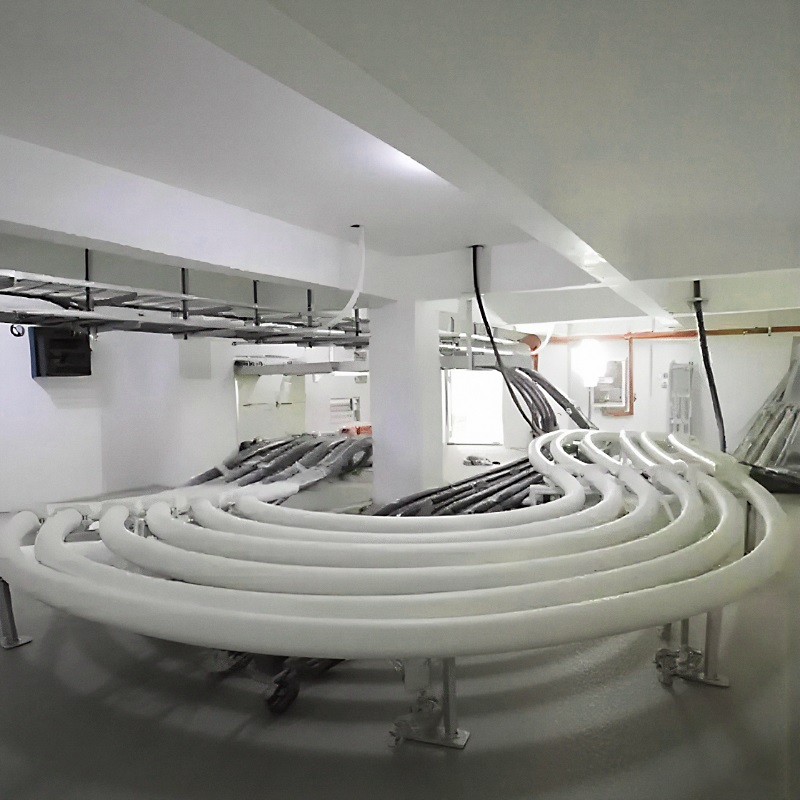

Primary Use: Flame-retardant treatment for cables in power plants, industrial facilities, telecommunications facilities, and civil buildings.

Secondary Use: Fire protection for combustible substrates (e.g., wood, metal structures, underground engineering).

Technical Specifications

Item	Details
Color	White
Surface Finish	Matte
Volume Solids	70 ± 2% (theoretical)
Specific Gravity	Approx. 1.3 kg/L
Theoretical Coverage	1.5 kg/m² (based on 0.5mm dry film thickness)
Application Methods	Brush coating, air spraying (using construction paint spray guns)
Diluent	Water
Tool Cleaning	Water
Drying Time	Surface dry: approx. 0.5 hours (at 23℃, 50% relative humidity)
Recoating Interval	Refer to construction guidelines
Application Temperature	Min. 5℃, Max. 50℃; avoid coating at relative humidity >85%
Substrate Temperature	≥3°C above dew point
Packaging	25 kg/drum
Storage & Shelf Life	Store in cool, ventilated areas with tightly sealed containers; valid for 6 months.

Application Guide

Surface Preparation:

Remove dust, oil, and contaminants from cables. Sand and dry the surface completely before coating application. Ensure surfaces are dry before coating.

Coating Application:

Mixing: Stir thoroughly before use. Dilute with tap water (moderately) if the viscosity is too high for spraying.
For plastic/rubber-sheathed cables: Apply at least 5 coats, achieving a thickness of 0.5-1mm.
For oil-paper insulated cables: First wrap with fiberglass cloth, then apply the coating.
For outdoor/humid environments: Apply a matching topcoat clear varnish as a protective layer.

Curing Protection:

Protect wet coatings from water, sunlight, contamination, and mechanical stress. Repair damage promptly.

Safety & Storage

Although water-based, avoid inhalation of paint mist.

Prevent direct skin and eye contact. Use protective gear (gloves, goggles) during application.

PPE: Wear masks and gloves to avoid inhalation/skin contact.

Storage: Keep containers sealed in a cool, dry place (5–35°C). valid for 6 months.

Disposal: Comply with local environmental regulations.

Disclaimer

The information herein is based on reliable formulation data, but actual performance may vary due to uncontrollable application conditions. This product is intended for professional use only. For technical support or inquiries, please contact our Technical Support and Customer Service Center.
