AF165 Wuxi High-Solids Antifouling Paint
AF165 is a tin-free antifouling coating based on vinyl copolymer and cuprous oxide, designed for marine applications to prevent biofouling on ship hulls and underwater structures.
SKU:
AF165 Wuxi High-Solids Antifouling Paint
Category: Corrosion Protection Coatings
Tags: Coating, Corrosion Protection Coatings
Description
Overview
WH-AF165 is a tin-free antifouling coating based on vinyl copolymer and cuprous oxide, designed for marine applications to prevent biofouling on ship hulls and underwater structures.
Product Features & Recommended Applications
- Key Features:
- High cuprous oxide content for robust antifouling performance.
- Excellent atmospheric resistance and prolonged antifouling protection under severe fouling conditions.
- Reduces hull drag, thereby lowering fuel consumption.
- Applications: Suitable for new construction and maintenance of marine vessels and offshore facilities.
Technical Specifications
Parameter | Details |
---|---|
Coating Type/Pigment Type | Modified vinyl copolymer / cuprous oxide |
Color | Red, brown |
Mix Ratio | Single-component (no mixing required) |
Density | Approx. 1.8 kg/L |
Volume Solids | 50±1% (theoretical) |
Flash Point | 26°C |
Pot Life | N/A |
Theoretical Coverage | 5.0 m²/L at 100μm dry film thickness (DFT) |
Film Thickness | Wet film: 200μm; Dry film: 100μm |
Application Method | High-pressure airless spraying |
Nozzle Size (Airless) | 0.69-0.79 mm |
Outlet Pressure | 27 MPa |
Thinner | TH015 |
Tool Cleaning | TH015 |
VOC Content | 406 g/L |
Drying Time (23°C) | Touch-dry: 2 hours |
Recoat Interval (Min) | 8 hours |
Minimum Launch Time | 8 hours |
Substrate Temperature | Minimum: 3°C above dew point |
Packaging | 30 kg single-component container |
Storage & Shelf Life | Store in cool, well-ventilated areas, away from high temperatures. Keep containers tightly sealed. Valid for 1 year. |
Application Guidelines
- Surface Preparation: Apply to clean, dry primer coats or intact antifouling coatings. Remove surface contaminants with high-pressure fresh water rinsing. For technical queries, contact our local office or technical service representative.
- Mixing & Thinning: Stir thoroughly before application. Thinning is generally unnecessary; if required for application purposes, add up to 5% TH015 thinner, subject to local VOC and air quality regulations.

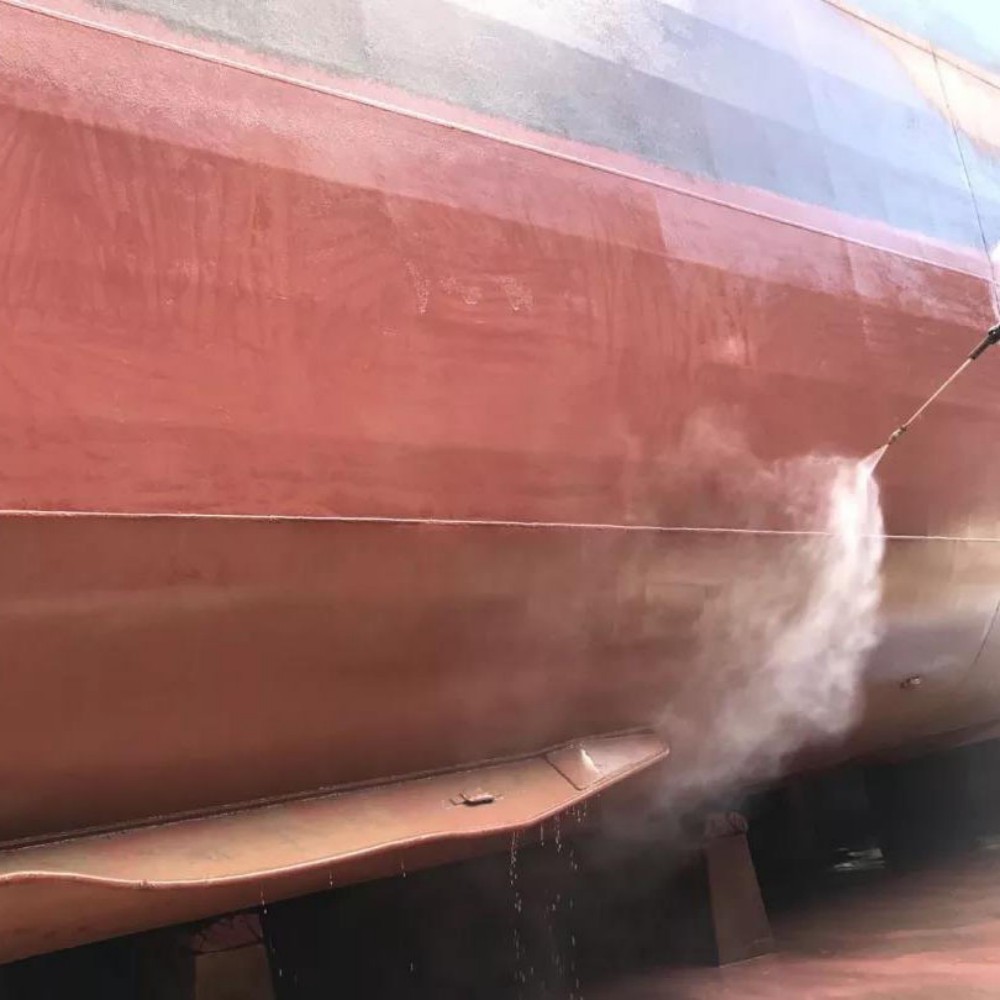

- Application Notes: Use high-pressure airless spraying (0.69-0.79 mm nozzle, 27 MPa pressure). Strict film thickness control is critical for service life.
Safety Precautions
- Hazards: May cause eye and skin irritation. Vapors may irritate respiratory tracts of sensitive individuals and cause skin allergic reactions.
- Protective Measures: Avoid inhalation of vapors. Prevent contact with eyes and skin. Use eye, ear, and skin protection gear, and appropriate respiratory masks to avoid potential irritation. Wash skin thoroughly after use. In case of discomfort, consult a physician. Wash contaminated clothing before reuse.
- First Aid: For respiratory arrest, perform mouth-to-mouth resuscitation and seek medical help immediately. In case of eye contact, flush with clean water for at least 15 minutes and consult a doctor promptly.
Disclaimer
The information herein is provided in good faith, with each value derived from theoretical calculations based on product formulations. Internal testing methods for the data can be disclosed upon request. Since application conditions are beyond the manufacturer’s control, this information does not constitute a warranty. The product is intended for professional use only. For inquiries, contact our technical support and customer service center.
Contact:
Wanhua Energysav Science & technology Group Co.,Ltd
Address: No. 56 Taiyuan Road, Yantai, Shandong, China
Fax: 400-059-1116 | Tel: +86-17761309662 | Postal Code: 264006
More Similar Items
The Largest MDI Manufacturer and Polyurethane Raw Material Supplier
Additional information
Weight | 25 kg |
---|
