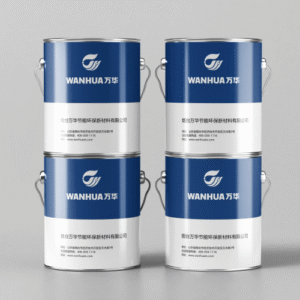

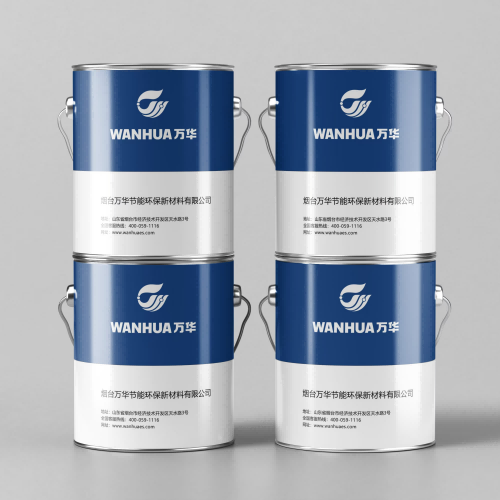

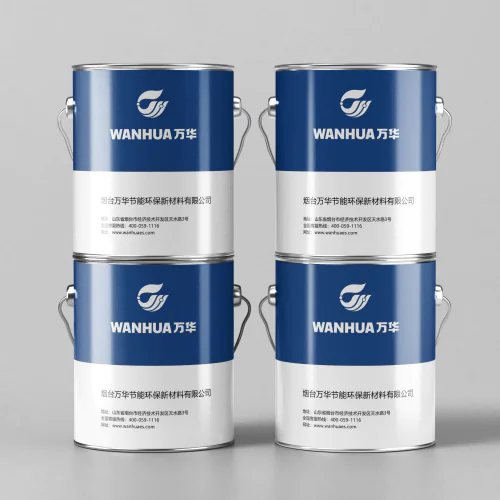

PU169 Aliphatic Acrylic Polyurethane Topcoat

PU169 is an excellent two-component aliphatic polyurethane topcoat, renowned for its superior light and color retention properties.

Name *
Email *
Enter enquiry subject *
Message *
SKU: PU169 Aliphatic Acrylic Polyurethane Topcoat Category: Tags: ,
Description

Overview

WH-PU169 is an excellent two-component aliphatic polyurethane topcoat, renowned for its superior light and color retention properties.

Product Features

  • Forms a high-strength, long-lasting anti-corrosion system when used with epoxy or polyurethane primers.
  • Exceptional anti-corrosion performance.
  • Good recoatability.
  • Capable of curing at low temperatures.

Recommended Applications

Suitable as a topcoat for high-performance steel structures or mechanical equipment surfaces.

Technical Parameters

ItemDetails
Resin/Pigment TypePolyurethane / Selected weather-resistant pigments
ColorWhite, black, light gray, or as per customer requirements
Mixing RatioWeight ratio 4 (base material) : 1 (curing agent)
Specific GravityApproximately 1.1 kg/L
Volume Solids Content58% (theoretical)
Flash Point33°C (91.4°F)
Pot Life3 hours at 23°C
Theoretical Spread Rate11.6 m²/L (based on 50μm dry film thickness)
Single Film ThicknessWet film: 100μm; Dry film: 60μm
Application MethodsBrush coating, airless spraying
Nozzle Size (Airless)0.43-0.48mm
Outlet Pressure (Airless)15 MPa
ThinnerTH004
Tool Cleaning SolventTH004
VOC Content418 g/L
Drying TimeTouch dry: approx. 1 hour at 23°C, 50% relative humidity
Recoat TimeRefer to application guidelines
Recommended PrimersEpoxy primer or as specified
Ambient TemperatureMin: -10°C; Max: 50°C. Avoid application at relative humidity >85%.
Substrate TemperatureMin: 4°C above dew point
PackagingTwo-component, 20 kg combined packaging
Storage & Shelf LifeStore in compliance with national regulations. Keep in cool, ventilated areas, away from excessive heat. Tightly seal containers. Shelf life: 1 year.

Application Guidelines

Surface Preparation
Before applying WH-PU169, ensure the substrate is free of grease, dust, moisture, and other contaminants, and properly primed. The primer should be smooth and free of surface defects such as dry spray or orange peel to ensure film appearance.
Mixing and Dilution
  • As a two-component product, WH-PU169 requires precise component ratio. Thoroughly mix the entire contents of each paint container before use.
  • First, stir the base material until uniformly smooth (no more than 2 minutes), then slowly add the curing agent and stir for 3 minutes. A variable-speed power stirrer is recommended.
  • Avoid over-stirring, as this may accelerate curing and shorten pot life. High temperatures reduce pot life, while low temperatures extend it.
  • Dilution is generally not required. If necessary, add a small amount of thinner (5% or less) in compliance with local VOC and air quality regulations.
Application
WH-PU169 can be applied by airless spraying, roller coating, or conventional spraying.
Ventilation
Maintain good ventilation in enclosed spaces to ensure worker safety and product performance. Air must be dry, as application is not permitted at relative humidity >85%.
Recoat Time
Physical parameters under different ambient temperatures:

Ambient Temperature-10°C0°C10°C20°C30°C
Touch Dry2 days23 hours12 hours6 hours4 hours
Full Cure (RH 70%)2 months32 days14 days7 days5 days
Minimum Recoat Interval3 days1 day16 hours12 hours8 hours
Maximum Recoat IntervalUnlimitedUnlimitedUnlimitedUnlimitedUnlimited

Safety Measures

Warning:

  • Irritating to eyes and skin. Vapors may cause respiratory allergies in sensitive individuals. May cause skin allergic reactions.
  • Avoid inhaling vapors. Keep away from eyes and skin. Wear protective gear for eyes, ears, and skin.
  • Use a suitable respirator to prevent potential respiratory irritation. Thoroughly wash skin after use. Wash contaminated clothing before reuse.
  • In case of respiratory arrest, perform mouth-to-mouth resuscitation and seek immediate medical attention.

First Aid:

  • If contact with eyes occurs, flush with clean water for at least 15 minutes. Remove contaminated clothing and shoes, and wash affected skin with soap.

Declaration

The information herein is reliable. Each value is theoretically calculated from the product formula. Internal measurement methods for the data can be provided upon request. Since usage conditions are beyond the manufacturer’s control, this information does not constitute a warranty. The product is for professional use only. For any questions, contact our company.

Our Technical Support and Customer Service Center is ready to provide product consultation and application technical services. Welcome to contact us via mail or phone.
