AC161 Acrylic Topcoat

WH-AC161 is a topcoat made of acrylic resin, non-chlorinated plasticizer and weather-resistant pigment, with excellent gloss and color retention.

Overview	WH-AC161 is a topcoat made of acrylic resin, non-chlorinated plasticizer and weather-resistant pigment, with excellent gloss and color retention.
Product Characteristics	Quick drying Excellent gloss and color retention Seawater resistant
Recommended Applications	Topcoat in acrylic and chlorinated rubber systems for use in moderate to severe corrosive environments.
Technical Parameters
Resin Type / Pigment Type	Acrylic resin / weather-resistant pigments
Color	White, light gray, or customized according to user requirements
Surface Finish	Semi-gloss
Density	Approximately 1.2 kg/L
Volume Solids Content	50±1% (theoretical value)
Flash Point	25℃ (77℉)
Theoretical Coverage	12.5 m²/L at 40μm dry film thickness
Single Coat Thickness	Wet film: 80μm; Dry film: 40μm
Application Methods	Airless spraying, brush painting, roller coating
Nozzle Size (Airless Spraying)	0.33-0.48mm
Outlet Pressure (Airless Spraying)	15 MPa
Thinner	TH015
Tool Cleaning	TH015
Volatile Organic Compounds (VOC)	590 g/L
Drying Time	Touch dry: 1 hour (23℃)
Recoating Interval	Minimum 4 hours at 23℃, maximum unlimited
Recommended Primers	As specified
Ambient Temperature	Maximum: 40℃; Avoid application at relative humidity >85%. Contact local agents if in doubt.
Substrate Temperature	Minimum: 3℃ above dew point

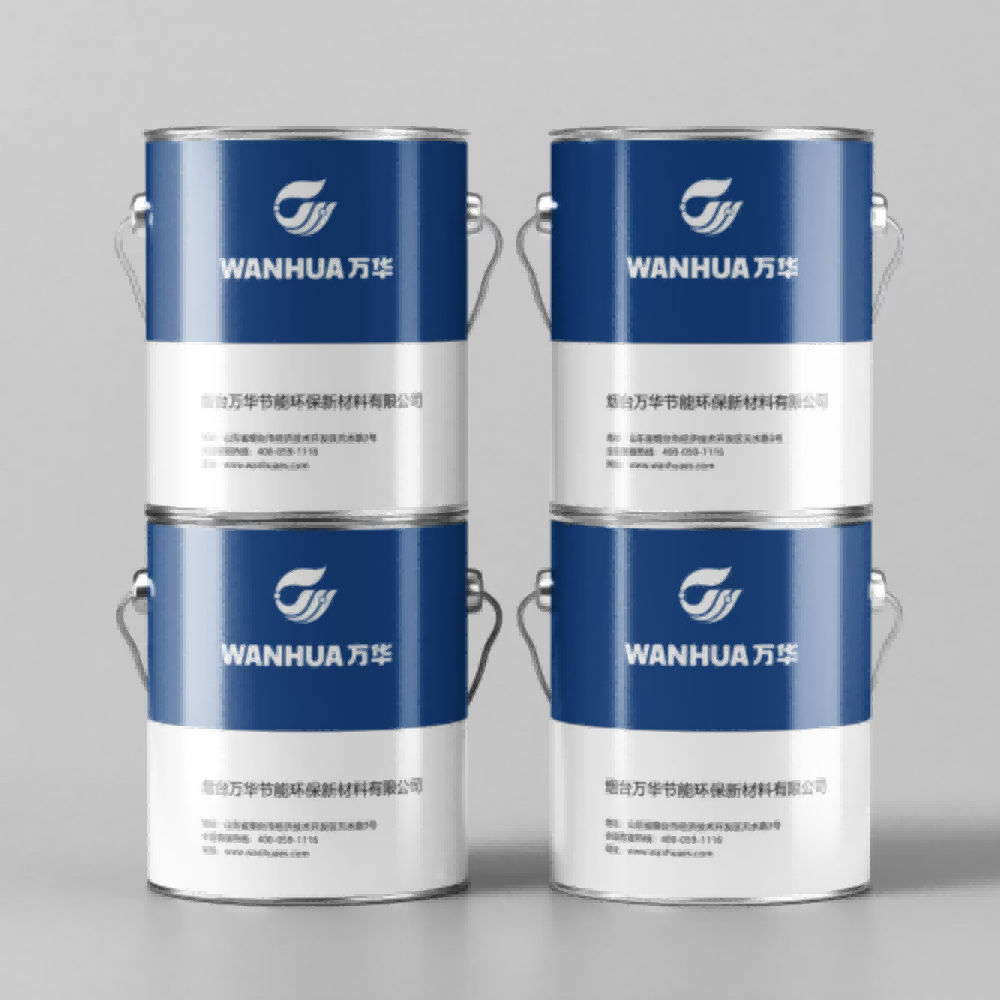

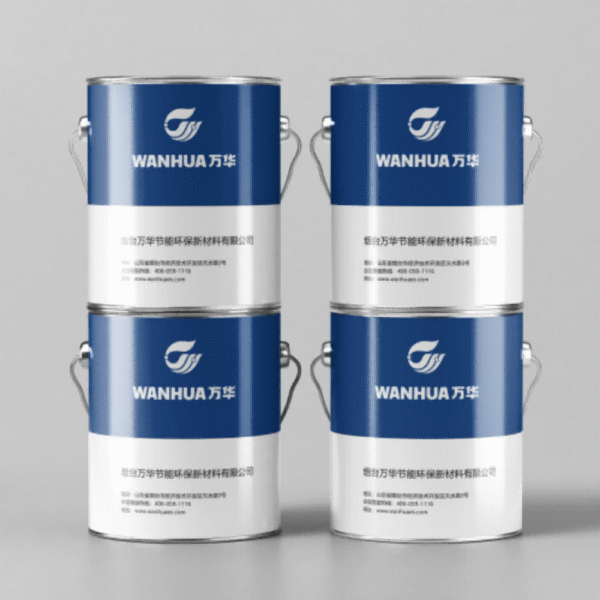

Packaging	Single-component, 20 kg packaging
Storage and Shelf Life	Products must be stored in accordance with national regulations. Store in a cool, well-ventilated place away from excessive heat. Containers must be tightly sealed. Shelf life: 1 year.
Application Guidelines
Surface Preparation	AC161 is designed for application on surfaces free of grease, dry soil, dust, moisture, and other impurities, and the surface should have a suitable primer for proper coating. Contact local offices if in doubt.
Mixing and Dilution	AC161 is a single-pack product. Stir the coating to obtain uniform consistency, and stirring should not exceed 2-3 minutes. Dilution is generally not required or desired. For application reasons, a small amount of thinner (5% or less) may be added, subject to local regulations on VOCs and air quality.
Application	AC161 can be applied by traditional spraying, roller coating, or airless spraying; nozzle size: 0.33-0.48mm, outlet pressure:

AC161 Acrylic Topcoat
15 MPa. For optimal results, ensure equipment and fluid lines are clean, free of water and solvents, and care should be taken to achieve correct and uniform film thickness. Ventilation: Good ventilation in all parts of enclosed areas is important for the safety of applicators and the proper performance of this product. It is recommended that AC161 should not be applied too thickly.

Safety Measures
Warning: May cause eye and skin irritation. Vapors may cause respiratory irritation in sensitive individuals. May cause skin allergic reactions. Avoid breathing vapors. Do not get in eyes, on skin. Use eye, ear, and skin protection equipment. Use suitable masks to avoid potential respiratory irritation. Wash skin thoroughly with water after use. Consult a doctor if unwell. Wash clothing before reuse. If not breathing, give artificial respiration, preferably mouth-to-mouth, and consult a doctor. If eye contact occurs, immediately flush with water for at least 15 minutes and seek medical attention immediately.

Declaration
The information listed in this document is reliable. Each value provided is a theoretical data calculated from the product formula. If needed, our company can inform the internal common measurement and determination methods for any of the above data. Since the conditions of use are beyond the control of the manufacturer, the information here is not provided as a guarantee. The product is for professional use only. If you have any questions, please contact our company.

Our Technical Support and Customer Service Center is willing to provide you with product consulting and application technical services. Welcome to contact us by letter or phone.

Contact:

Wanhua Energysav Science & technology Group Co.,Ltd

Address: No. 56 Taiyuan Road, Yantai, Shandong, China

Fax: 400-059-1116 | Tel: +86-17761309662 | Postal Code: 264006
