PU167 Aliphatic Acrylic Polyurethane Matte Topcoat
PU167 is an excellent two-component aliphatic polyurethane topcoat, offering superior light and color retention properties.
SKU:
PU167 Aliphatic Acrylic Polyurethane Matte Topcoat
Category: Corrosion Protection Coatings
Tags: Coating, Corrosion Protection Coatings
Description
Overview
WH-PU167 is an excellent two-component aliphatic polyurethane topcoat, offering superior light and color retention properties.
Product Characteristics
- Forms a high-strength long-term anti-corrosion system when used with epoxy or polyurethane primers.
- Excellent anti-corrosion performance.
- Good recoatability.
- Capable of curing at low temperatures.
Recommended Applications

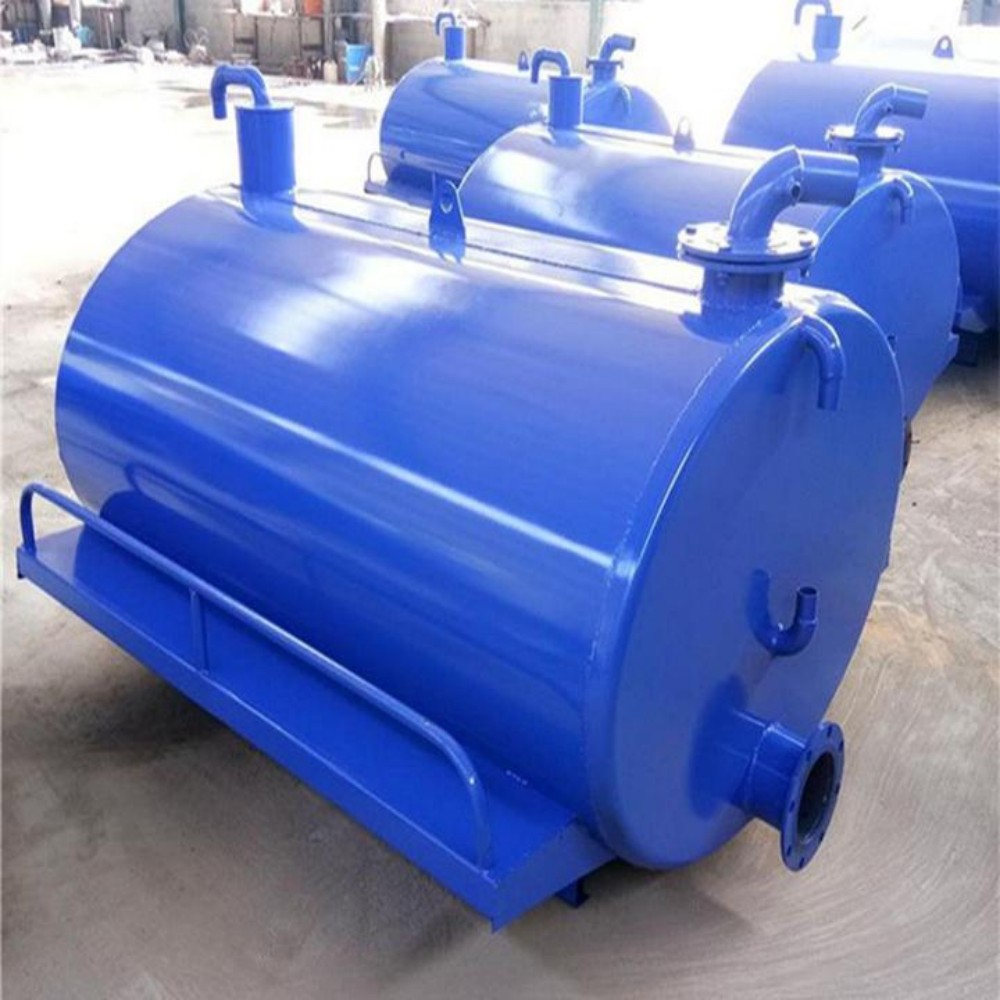

Suitable as a topcoat for high-performance steel structures or mechanical equipment surfaces.
Technical Parameters
Item | Details |
---|---|
Resin/Pigment Type | Polyurethane / Selected weather-resistant pigments |
Color | White, black, light gray, or as per customer requirements |
Surface Finish | Matte |
Mixing Ratio | Weight ratio 5 (base material) : 1 (curing agent) [CPU1670] |
Specific Gravity | 1.5 ± 0.1 kg/L |
Volume Solids | 58% (theoretical) |
Flash Point | 33°C |
Pot Life | 3 hours at 23°C |
Theoretical Coverage | 11.6 m²/L (at 50μm dry film thickness) |
Single Coat Thickness | Wet film: 100μm; Dry film: 60μm |
Application Methods | Brush coating, airless spraying |
Airless Spray Nozzle | 0.43-0.48mm |
Airless Spray Pressure | 15 MPa |
Thinner | TH004 |
Tool Cleaning Solvent | TH004 |
VOC Content | 410 g/L |
Drying Time | Touch dry: approx. 1 hour at 23°C, 50% relative humidity |
Recoat Time | Refer to application guidelines |
Recommended Primers | Epoxy primer or as specified |
Ambient Temperature | Min: -10°C; Max: 50°C. Avoid application at relative humidity >85%. |
Substrate Temperature | Min: 4°C above dew point |
Storage & Shelf Life | Store in accordance with national regulations. Keep in cool, well-ventilated areas, away from excessive heat. Tightly seal containers. Shelf life: 1 year. |
Application Guidelines
Surface Preparation
- Ensure the substrate is free of grease, dust, moisture, and other contaminants before applying WH-PU167, and that a suitable primer is present.
- The primer surface must be smooth and free of dry spray, orange peel, or other defects to ensure optimal topcoat appearance.
Mixing and Dilution
- WH-PU167 is a two-component product requiring precise component ratio. Mix the entire contents of each paint bucket before use.
- First, stir the base material until uniform and smooth (no more than 2 minutes), then slowly add the curing agent and stir for 3 minutes. A variable-speed power mixer is recommended.
- Avoid over-stirring, as this may accelerate curing and shorten pot life. High temperatures shorten pot life, while low temperatures extend it.
- Dilution is generally not required. If necessary, add a small amount of thinner (5% or less), subject to local VOC and air quality regulations.
Application
- WH-PU167 can be applied by airless spraying, roller coating, or conventional spraying.
- Ventilation: Good ventilation in enclosed spaces is critical for applicator safety and product performance. Air must be dry, as application at humidity >85% is prohibited.
Recoat Time
Physical parameters at different ambient temperatures:
Ambient Temperature | -10°C | 0°C | 10°C | 20°C | 30°C |
---|---|---|---|---|---|
Touch Dry | 2 days | 23h | 12h | 6h | 4h |
Full Cure (RH 70%) | 2 months | 32 days | 14 days | 7 days | 5 days |
Minimum Recoat Interval | 3 days | 1 day | 16h | 12h | 8h |
Maximum Recoat Interval | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
Safety Measures
- Warning: Irritating to eyes and skin. Vapors may cause respiratory allergies in sensitive individuals. May cause skin allergic reactions.
- Avoid inhaling vapors. Keep away from eyes and skin. Use protective equipment for eyes, ears, and skin.
- Use a suitable respirator to prevent potential respiratory irritation. Thoroughly wash skin after use. Wash contaminated clothing before reuse.
- First Aid: In case of eye contact, flush with clean water for at least 15 minutes. Remove contaminated clothing and shoes, and wash affected skin with soap. If breathing stops, perform mouth-to-mouth resuscitation and seek immediate medical attention.
Declaration
The information herein is reliable. Each value is a theoretical data calculated from the product formula. Internal standard test methods for the provided data can be disclosed upon request. Since the conditions of use are beyond the manufacturer’s control, this information is not provided as a guarantee. The product is for professional use only. For any questions, contact our company.
Our Technical Support and Customer Service Center is ready to provide product consulting and application technical services. Welcome to contact us by letter or phone.
Contact:
Wanhua Energysav Science & technology Group Co.,Ltd
Address: No. 56 Taiyuan Road, Yantai, Shandong, China
Fax: 400-059-1116 | Tel: +86-17761309662 | Postal Code: 264006
