EP112 Epoxy Iron Red Primer

EP112 is a two-component epoxy primer containing iron red and zinc phosphate, cured by modified polyamide. It features excellent film adhesion,wear resistance, and impact resistance, along with superior anti-corrosion performance.

Name *
Email *
Enter enquiry subject *
Message *
SKU: EP112 Epoxy Iron Red Primer Category: Tags: ,
Description

Overview

WH-EP112 is a two-component epoxy primer containing iron red and zinc phosphate, cured by modified polyamide. It features excellent film adhesion, wear resistance, and impact resistance, along with superior anti-corrosion performance.

Recommended Applications

Suitable for low-temperature curing on steel surfaces and hot-dip galvanized surfaces.

Technical Parameters

ItemDetails
Binder/Pigment TypeEpoxy resin, modified polyamide / Iron red, zinc phosphate
ColorIron red
Surface FinishFlat
Mixing Ratio5 (base material) : 1 (curing agent) / Weight ratio
Curing AgentCEP1110
Specific GravityApproximately 1.31 kg/L
Volume Solids55% (theoretical)
Pot Life2 hours (23℃)
Flash Point30℃
Spread Rate11 m²/L at 50μm dry film thickness
Single Film ThicknessWet film: 95μm; Dry film: 50μm
Application MethodsAirless spraying, brush coating, roller coating, conventional spraying
Nozzle Size0.43-0.48mm
Outlet Pressure17.5 MPa
Diluent/CleanerMaterial: TH003; Cleaner: TH003
VOC Content400 g/L
Drying TimeTouch dry: approx. 3 hours (23℃)
Recoat IntervalMin. 4 hours, Max. 10 days (subject to construction environment)
Topcoat CompatibilityEpoxy coatings, acrylic topcoats, polyurethane topcoats, chlorinated rubber coatings
Ambient TemperatureMinimum: -10℃
Substrate TemperatureAt least 4℃ above dew point

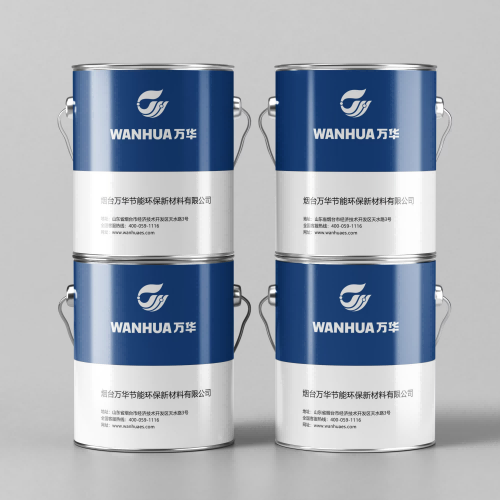

PackagingTwo-component, 25 kg combined packaging
Storage & Shelf LifeStore in compliance with national regulations. Keep in cool, well-ventilated areas, away from excessive heat. Tightly seal containers. Shelf life: 6 months.

Application Guidelines

Surface Preparation
  • Galvanized Surfaces: Remove dust, oil, and grease with appropriate cleaners. Use high-pressure freshwater to rinse off salts and other contaminants. Scrub with a stiff nylon brush during high-pressure washing if necessary to remove white rust. Apply the coating as soon as possible to avoid recontamination.
Mixing and Dilution
  • WH-EP112 is a two-pack product with a pre-defined component ratio. Use the entire contents of each bucket after thorough mixing.
  • First, stir the base material until uniformly smooth (no more than 2 minutes), then slowly add the curing agent and stir for 3 minutes. A variable-speed power stirrer is recommended. Avoid over-stirring, as it may accelerate curing.
Construction
  • WH-EP112 can be applied by conventional spraying, airless spraying, brush, or roller.
  • Ventilation: Ensure good ventilation in enclosed spaces to protect construction personnel and maintain proper product performance.
  • High temperatures shorten the pot life of the mixture, while low temperatures extend it. Dilution is generally unnecessary; if required, add a small amount of diluent (5% or less) in compliance with local VOC and air quality regulations.

Safety Precautions

  • Warning: May cause eye and skin irritation. Vapors may trigger respiratory allergies in sensitive individuals and could cause skin allergic reactions. Avoid inhaling vapors. Keep away from eyes and skin. Wear protective gear for eyes, ears, and skin. Use a suitable respirator to prevent potential respiratory irritation. Thoroughly wash skin after use. Launder contaminated clothing before reuse. In case of respiratory arrest, perform mouth-to-mouth resuscitation and seek immediate medical attention.
  • Burn Risk: Exothermic reactions may generate heat during product use. Wear gloves and handle with care after mixing.
  • First Aid: In case of eye contact, flush with clean water for at least 15 minutes. Remove contaminated clothing and shoes, and wash affected skin with soap.

Declaration

The information herein is reliable. Each listed value is theoretically calculated from the product formula. Internal standard measurement methods for the provided data can be disclosed upon request. Since the conditions of use are beyond the manufacturer’s control, this information is not provided as a guarantee. The product is intended for professional use only. For any questions, contact our company.
