EF111 Phenolic Epoxy Coating

EF111 Phenolic Epoxy Coating is a two-component, high-build epoxy primer that can also be used as a topcoat. It features exceptional abrasion resistance, high-temperature resistance, corrosion protection, seawater resistance, ablation resistance, chemical resistance, and a high solid content.

Inquiry Now
Name *
Email *
Enter enquiry subject *
Message *
WhatsApp
SKU: EF111 Phenolic Epoxy Coating Category: Tags: ,
Description

Overview

WH-EF111 Phenolic Epoxy Coating is a two-component, high-build epoxy primer that can also be used as a topcoat. It features exceptional abrasion resistance, high-temperature resistance, corrosion protection, seawater resistance, ablation resistance, chemical resistance, and a high solid content.

Product Features

  • Excellent resistance to seawater, chemicals, and crude oil.
  • Superior thick-film application properties, as well as outstanding wear and impact resistance.
  • Wide (construction temperature) range, operable between -5°C and 40°C.
  • Good compatibility with various topcoats, including epoxy topcoats, polyurethane topcoats, alkyd topcoats, chlorinated rubber topcoats, and one-component acrylic topcoats.

Recommended Applications

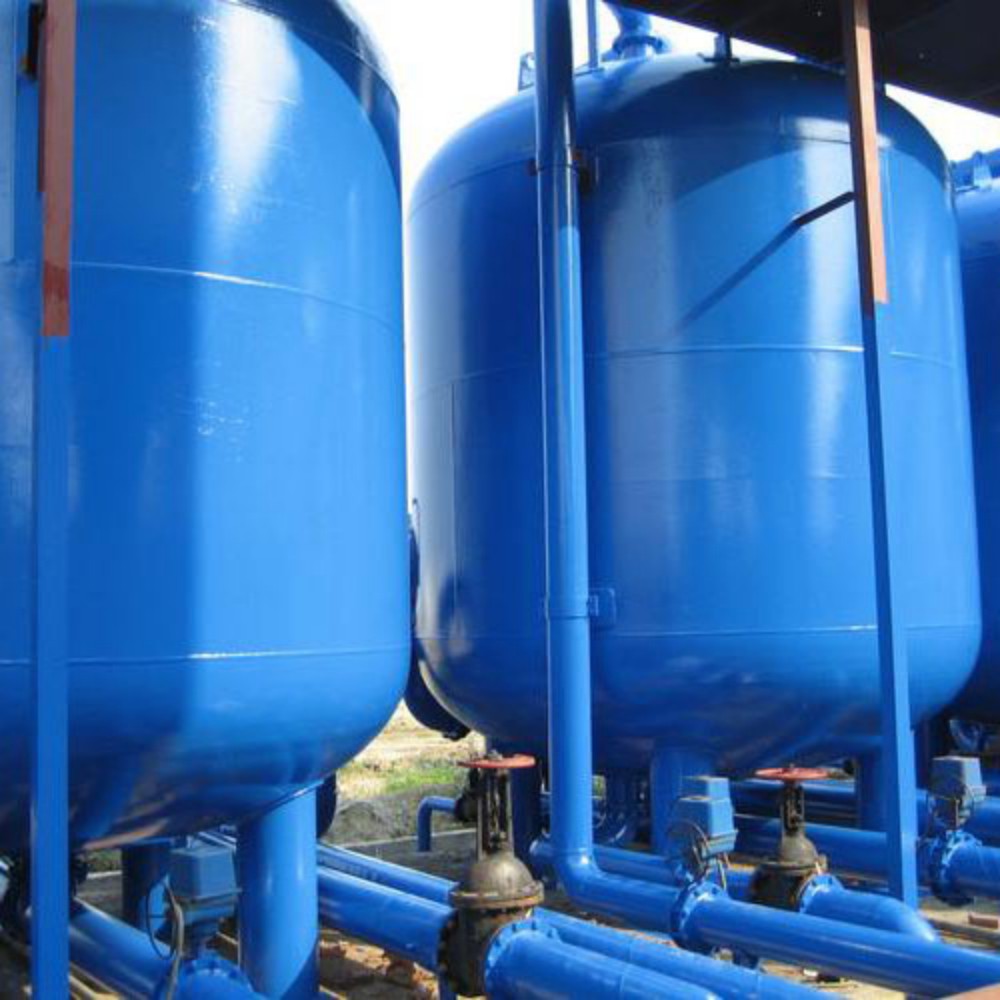

  • Can be used alone as a universal primer for ballast tanks and various parts of ships, as an integrated primer/topcoat for the inner linings of chemical plant storage tanks, or in combination with other paint systems.
  • Provides excellent anti-corrosion performance in both freshwater and seawater environments.

Technical Parameters

ItemSpecification
Binder Type/Pigment TypePhenolic epoxy resin/anti-rust pigment
ColorLight gray, red, and other colors
Surface FinishFlat
Mixing RatioWeight ratio: 22 (base material) : 4 (curing agent)
Curing AgentCEF1110
DensityApproximately 1.4 kg/L
Volume Solids Content100%
Flash Point93.9°C
Pot Life4 hours (23°C)
Theoretical Spread Rate10 m²/L (calculated at 100μm dry film thickness)
Single Film ThicknessWet film: 100μm; Dry film: 100μm
Application MethodsBrush coating, roller coating, airless spraying, air spraying
Nozzle Size (Airless)0.53mm
Outlet Pressure (Airless)17.5 MPa
Tool Cleaning SolventTH003
Thinner UsageAirless spraying: ≤25%; Air spraying: ≤50%; Brush coating: ≤5%
VOC Content0 g/L
Surface Dry Time1 hour (23°C)
Touch Dry Time2 hours (23°C)
Full Curing Time7 days (23°C)
Recoating Interval16 hours
Recommended PrimerSelf
Ambient TemperatureMinimum: 10°C
Substrate TemperatureAt least 3°C above dew point

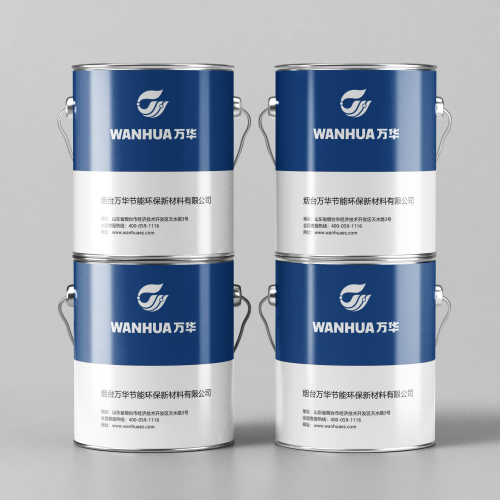

PackagingTwo components, 26kg per set
Storage & Shelf LifeStore in compliance with national regulations; keep in a cool, well-ventilated place away from high temperatures. Containers must be tightly sealed. Shelf life: 1 year.

Application Guidelines

ProcedureDetails
Surface Preparation– New steel: Blast to Sa2.5 standard. Before final application, thoroughly clean damaged shop primer and contaminated areas during storage and processing. Repair damaged parts with this product or other specified epoxy paint.
– Other metals: Create a rough surface and clean with solvent to ensure dryness and freedom from impurities.
– Maintenance: Remove grease with appropriate cleaners. Use high-pressure fresh water to remove salts and other contaminants. Remove loose rust and debris by sandblasting or power tools. Smooth corners, sweep away residues, and apply complete paint film to achieve the original film thickness.
Mixing & DilutionWH-EF111 is a two-component product with a defined mixing ratio. Use the entire contents of each bucket after mixing. First, stir the base material until uniform (no more than 2 minutes), then slowly add the curing agent and stir for 3 minutes. A variable-speed power stirrer is recommended. Avoid over-stirring, as it may accelerate curing and shorten the product’s pot life. High temperatures shorten the pot life, while low temperatures extend it.
ApplicationWH-EF111 can be applied by airless spraying, brush coating, or roller coating. Ensure good ventilation in confined spaces. Avoid applying in the presence of standing water or rain. For airless spraying, use a 0.53mm nozzle with an output pressure of 17.5 MPa for optimal results.
Safety MeasuresWarning: Irritating to eyes and skin. Vapors may cause respiratory allergies in sensitive individuals. May cause skin allergic reactions. Avoid inhaling vapors. Keep away from eyes and skin. Wear protective gear for ears, eyes, and skin. Use a suitable respiratory protector to avoid potential respiratory irritation. Thoroughly wash skin after use. Wash clothes before reuse. In case of no breathing, perform mouth-to-mouth resuscitation and seek immediate medical attention. If eyes are contaminated, rinse with water for at least 15 minutes and consult a doctor immediately.

Declaration

The information listed in this document is reliable. Each value provided is a theoretical data calculated from the product formula. If needed, our company can inform the internal common measurement and determination methods for any of the above data. Since the use conditions are beyond the control of the manufacturer, this information is not provided as a guarantee. The product is for professional use only. For any questions, please contact our company.
Our Technical Support and Customer Service Center is willing to provide you with product consultation and application technical services. Welcome to contact us by letter or phone.
