PU161 Polyurethane Topcoat

PU161 is an excellent two-component polyurethane topcoat, offering superior decorative and anti-corrosive properties. It is recommended to be used in combination with epoxy primer for anti-corrosion of mechanical equipment, featuring high cost-effectiveness and decorative effects.

Inquiry Now
Name *
Email *
Enter enquiry subject *
Message *
WhatsApp
SKU: PU161 Polyurethane Topcoat Category: Tags: ,
Description

Overview

WH-PU161 is an excellent two-component polyurethane topcoat, offering superior decorative and anti-corrosive properties. It is recommended to be used in combination with epoxy primer for anti-corrosion of mechanical equipment, featuring high cost-effectiveness and decorative effects.

Product Features

  • Excellent anti-corrosive property
  • Superior decorative property
  • Good recoatability
  • Capable of low-temperature curing
  • Can be applied as a topcoat on the surfaces of mechanical equipment and steel structures in indoor environments

Technical Parameters

ItemDetails
Resin Type / Pigment TypePolyurethane / Selected weather-resistant pigments
ColorCustomizable as per user requirements
Surface FinishSemi-gloss
Mixing RatioWeight ratio 3 (base material) : 1 (curing agent)
Curing AgentCPU1610
Specific GravityApproximately 1.2 kg/L
Volume Solids Content52% (theoretical)
Flash Point33°C (91.4°F)
Pot Life3 hours at 23°C
Theoretical Coverage Rate10.4 m²/L (based on 50μm dry film thickness)
Single Coat ThicknessWet film: 100μm; Dry film: 50μm
Application MethodsBrush painting, airless spraying
Nozzle Size (Airless Spraying)0.43-0.48mm
Outlet Pressure (Airless Spraying)15 MPa
ThinnerTH004
Tool Cleaning SolventTH004
VOC (Volatile Organic Compounds)420 g/L
Drying TimeTouch dry: approximately 2 hours at 23°C and 50% relative humidity
Recoating IntervalRefer to application guidelines
Recommended PrimersPU111, EP111, EP070, or as specified
Environmental TemperatureMinimum: -10°C; Maximum: 50°C. Avoid application when relative humidity exceeds 85%.
Substrate TemperatureMinimum: 4°C above dew point

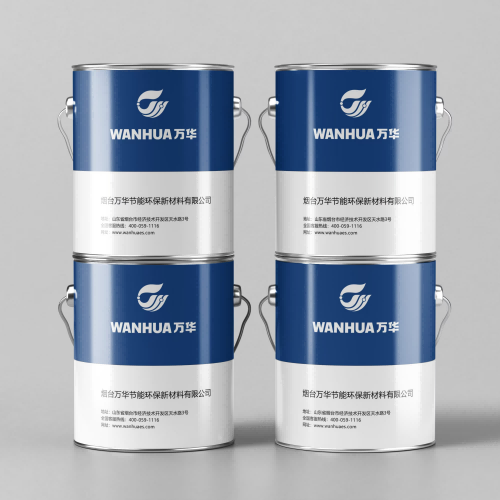

PackagingTwo-component, 20 kg combined packaging
Storage and Shelf LifeThe product must be stored in accordance with national regulations. Store in a cool, well-ventilated place, avoiding excessive temperatures. Containers must be tightly sealed. Shelf life: 1 year.

Application Guidelines

Surface Preparation
Before applying PU161, the surface of the object to be coated must be free of grease, dust, moisture, and other impurities, and a corresponding primer must be applied. To ensure the appearance of the paint film, the primer should be smooth and free of surface defects such as dry spray and orange peel.
Mixing and Dilution
PU161 is a two-component product with a specific component ratio. It is necessary to fully mix each barrel of coating before use. First, stir the base material until it is uniformly smooth, which should not take more than 2 minutes. Then, slowly add the curing agent and stir for 3 minutes. It is recommended to use a variable-speed power stirrer. Do not over-stir, as this will accelerate curing and shorten the product’s pot life. High temperatures will shorten the mixture’s pot life, while low temperatures will extend it. Generally, no dilution is required. If necessary, a small amount of thinner (5% or less) can be added, subject to local regulations on VOC and air quality.
Application
PU161 can be applied by airless spraying, roller coating, or conventional spraying.
Ventilation
Maintaining good ventilation in enclosed spaces is crucial for the safety of construction personnel and the proper performance of the product. The air must be dry, as the product cannot be applied when the humidity exceeds 85%.

Recoating Interval

Physical parameters at different ambient temperatures:

Ambient Temperature-10°C0°C10°C20°C30°C
Touch Dry3 days36 hours16 hours8 hours6 hours
Full Curing (Relative Humidity: 70%)2 months32 days14 days7 days5 days
Minimum Recoating Interval6 days3 days32 hours16 hours12 hours
Maximum Recoating IntervalUnlimitedUnlimitedUnlimitedUnlimitedUnlimited

Safety Measures

  • Warning: Irritating to eyes and skin. Vapors may cause respiratory allergies in sensitive individuals. May cause skin allergic reactions. Avoid inhaling vapors. Do not contact eyes or skin. Wear protective equipment for ears, eyes, and skin. Use a suitable respirator to avoid potential respiratory irritation. Thoroughly wash skin after use. Clothes should be washed before reuse. In case of no breathing, perform mouth-to-mouth resuscitation and seek medical attention immediately.
  • First Aid: If accidentally contacted with eyes, rinse immediately with plenty of water for at least 15 minutes. Remove contaminated clothing and shoes, and wash the contacted skin with soap.

Declaration

The information listed in this document is reliable. Each provided value is a theoretical data calculated from the product formula. If required, our company can inform the internal common measurement and determination methods for any of the above data. Since the usage conditions cannot be controlled by the manufacturer, the information here is not provided as a guarantee. The product is only for professional use. If you have any questions, please contact our company.

Our Technical Support and Customer Service Center is willing to provide you with product consultation and application technical services. Welcome to contact us by letter or phone.

Contact:

Wanhua Energysav Science & technology Group Co.,Ltd
Address: No. 56 Taiyuan Road, Yantai, Shandong, China
Fax: 400-059-1116 | Tel: +86-17761309662 | Postal Code: 264006
