CLARNATE A1357
Description
CLARNATE® A1357 Polycarbonate Resin
Basic Information
Features | • Low melt viscosity • Excellent mold release property • UV stabilized |
|---|---|
| Application | • General purpose |

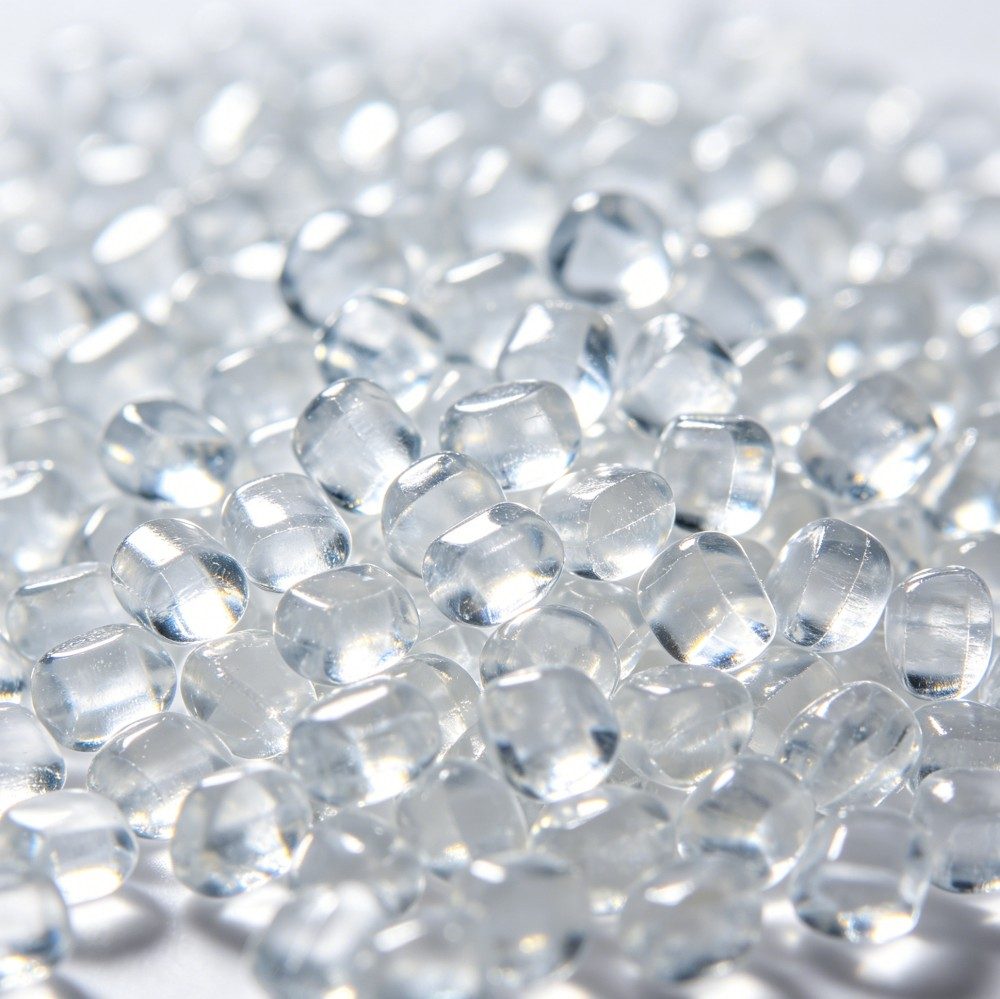

| Appearance | • Transparent pellets |
| Processing Method | • Injection molding |
Product Properties
| Property | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Physical Properties | ||||
| Melt Flow Rate | ASTM D1238 | 300℃/1.2kg | g/10min | 34 |
| Mold Shrinkage | ASTM D955 | - | % | 0.5-0.7 |
| Water Absorption | ASTM D570 | 23℃,24h | % | 0.2 |
| Density | ASTM D792 | - | g/cm³ | 1.2 |
| Mechanical Properties | ||||
| Tensile Strength | ASTM D638 | 50mm/min | MPa | 62 |
| Tensile Modulus | ASTM D638 | 1mm/min | MPa | 2300 |
| Yield Stress | ASTM D638 | 50mm/min | MPa | 62 |
| Yield Strain | ASTM D638 | 50mm/min | % | 6 |
| Elongation at Break | ASTM D638 | 50mm/min | % | 115 |
| Flexural Strength | ASTM D790 | 2mm/min | MPa | 90 |
| Flexural Modulus | ASTM D790 | 2mm/min | MPa | 2250 |
| Izod Notched Impact Strength | ASTM D256 | 23℃ | J/m | 680 |
| Thermal Properties | ||||
| Heat Deflection Temperature (Unannealed) | ASTM D648 | 1.82MPa;3.2mm | ℃ | 124 |
| Vicat Softening Point (Unannealed) | ASTM D1525 | 120℃/h;50N | ℃ | 146 |
| Optical Properties | ||||
| Haze | ASTM D1003 | 3mm | % | ＜0.8 |
| Light Transmittance | ASTM D1003 | 3mm | % | 90 |
| Refractive Index | ASTM D542 | - | - | 1.586 |
| Flammability | ||||
| UL94 Flame Rating | UL 94 | 3mm | - | HB |
| UL 94 | 1.5mm | - | V2 | |
| Electrical Properties | ||||
| Relative Permittivity | IEC 60250 | 100Hz | - | 3.1 |
| IEC 60250 | 1MHz | - | 3.0 | |
| Dissipation Factor | IEC 60250 | 100Hz | 10⁻⁴ | 5 |
| IEC 60250 | 1MHz | 10⁻⁴ | 90 | |
| Volume Resistivity | IEC 60093 | - | Ω·m | 10¹⁴ |
| Surface Resistivity | IEC 60093 | - | Ω | 10¹⁶ |
| Dielectric Strength | IEC 60243-1 | 1mm | KV/mm | 34 |
| Comparative Tracking Index (CTI) | IEC 60112 | Solution A | V | 250 |
| Processing Parameters | ||||
| Pre-drying Temperature | - | - | ℃ | 120 |
| Pre-drying Time | - | - | h | 5 |
| Injection Melt Temperature | - | - | ℃ | 270-290 |
| Mold Temperature | - | - | ℃ | 80 |
| Injection Speed | - | - | mm/s | 50 |
Version Information
Initial Release Date: Jan 25, 2021, Version: V1.0
All specifications and data stated herein are based on current technical knowledge and practical experience of Wanhua, for reference only. Final guaranteed specifications shall comply with relevant quality certificate and supply contract. Purchasers shall conduct independent testing to verify product suitability for designated processing and end-use applications prior to production. As downstream processing and application of our products are beyond our control, our liability shall be limited only to the supplied goods and shall exclude any indirect losses incurred during customers’ subsequent production. Our Marketing Technical Support & Customer Service Center provides professional technical consultation and application support services upon request.
