CLARNATE FC3105
Description
CLARNATE® FC3105 Polycarbonate Resin
Basic Information
Features | • Food contact compliant • Medium viscosity • Excellent mold release property |
|---|---|
| Appearance | • Clear / Transparent |

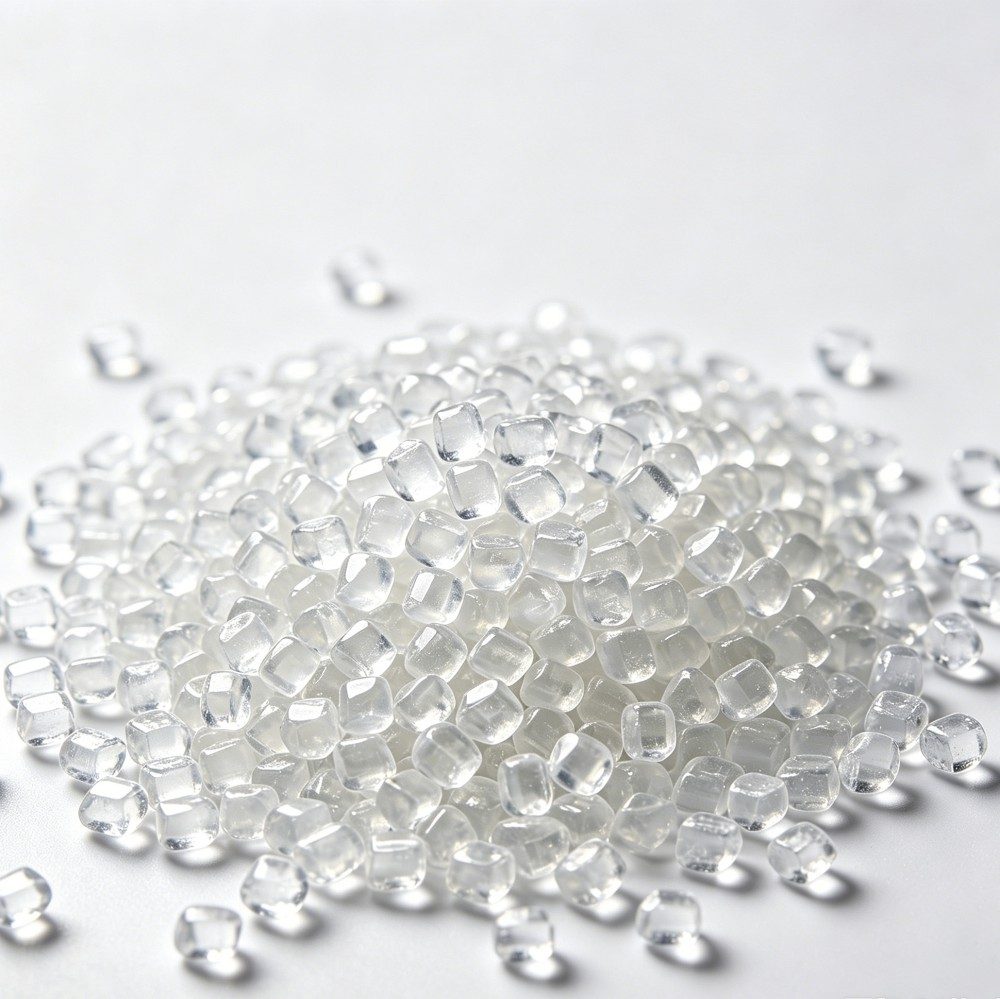

| Form | • Pellets |
| Processing Method | • Injection molding |
Product Properties
| Property | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Physical Properties | ||||
| Melt Flow Rate | ASTM D1238 | 300℃/1.2kg | g/10min | 10 |
| Mold Shrinkage | ASTM D955 | - | % | 0.5-0.7 |
| Water Absorption | ASTM D570 | 23℃,24h | % | 0.2 |
| Density | ASTM D792 | - | g/cm³ | 1.2 |
| Mechanical Properties | ||||
| Tensile Strength | ASTM D638 | 50mm/min | MPa | 75 |
| Tensile Modulus | ASTM D638 | 1mm/min | MPa | 2300 |
| Yield Stress | ASTM D638 | 50mm/min | MPa | 65 |
| Elongation at Break | ASTM D638 | 50mm/min | % | 130 |
| Flexural Strength | ASTM D790 | 2mm/min | MPa | 95 |
| Flexural Modulus | ASTM D790 | 2mm/min | MPa | 2400 |
| Izod Notched Impact Strength | ASTM D256 | 23℃ | J/m | 800 |
| Thermal Properties | ||||
| Heat Deflection Temperature (Unannealed) | ASTM D648 | 1.82MPa;3.2mm | ℃ | 128 |
| Vicat Softening Point (Unannealed) | ASTM D1525 | 120℃/h;50N | ℃ | 149 |
| Optical Properties | ||||
| Haze | ASTM D1003 | 3mm | % | -- |
| Light Transmittance | ASTM D1003 | 3mm | % | 88 |
| Processing Parameters | ||||
| Pre-drying Temperature | - | - | ℃ | 120 |
| Pre-drying Time | - | - | h | 5 |
| Injection Molding Temperature | - | - | ℃ | 280-300 |
| Mold Temperature | - | - | ℃ | 80 |
Version Information
Initial Release Date: Oct 10, 2019, Version: V1.0 1st Revision Date: Mar 01, 2021, Version: V2.0, Revision Reason: Regular update
All specifications and data contained herein are prepared based on our existing technical knowledge and practical experience and for reference only. Binding specifications shall be subject to the quality certificate and supply contract. Buyers shall perform relevant tests to confirm the product fits intended processing techniques and applications. Since subsequent processing and application of our products are beyond our control, our liability is limited solely to the delivered products and excludes any indirect damages arising from customers’ production using our material. Our Marketing Technical Support & Customer Service Center provides product consultation and application technical support.
