CLARNATE FC3155

Basic Information

Features	• Food contact compliant • Low melt viscosity • Excellent mold release property
Appearance	• Clear / Transparent

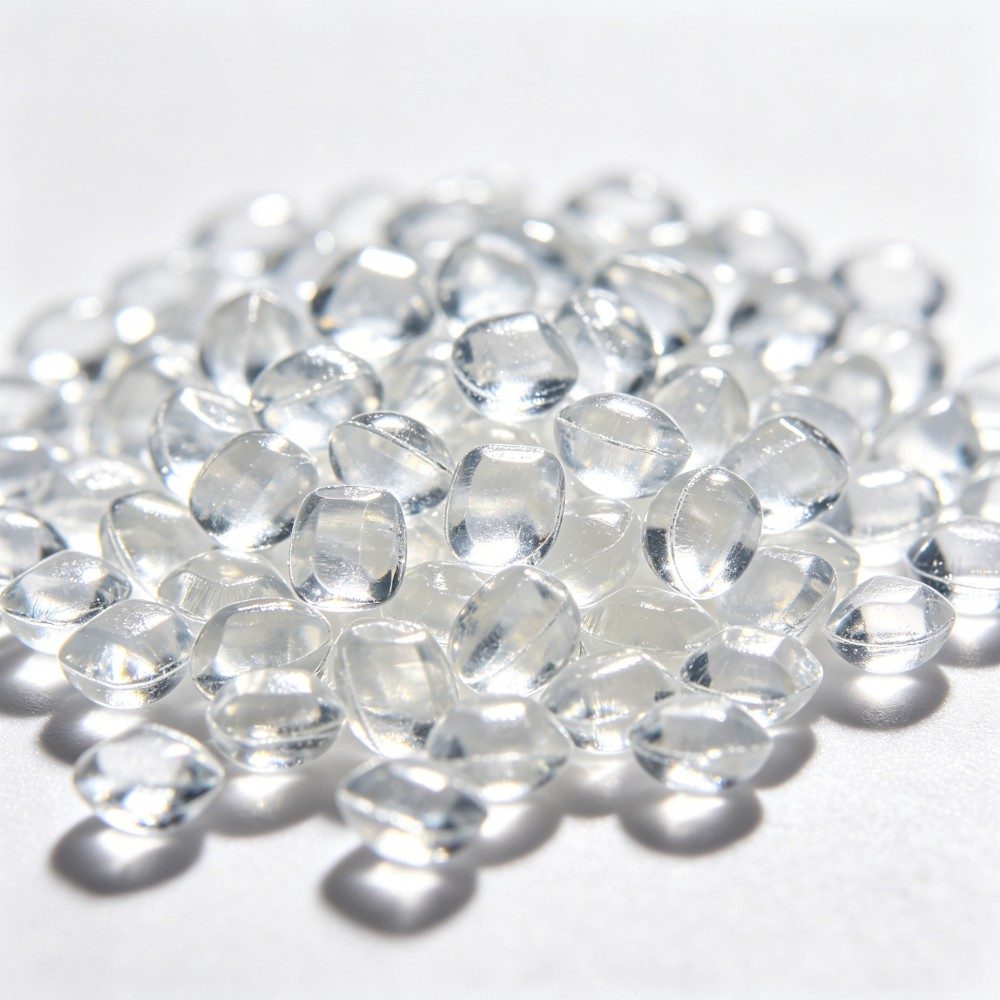

Form	• Pellet
Processing Method	• Injection Molding

Product Properties

Property	Test Standard	Test Condition	Unit	Typical Value
Physical Properties
Melt Flow Rate	ASTM D1238	300℃ / 1.2kg	g/10min	15
Mold Shrinkage	ASTM D955	-	%	0.5–0.7
Water Absorption	ASTM D570	23℃, 24h	%	0.2
Density	ASTM D792	-	g/cm³	1.2
Mechanical Properties
Tensile Strength	ASTM D638	50mm/min	MPa	70
Tensile Modulus	ASTM D638	1mm/min	MPa	2300
Yield Stress	ASTM D638	50mm/min	MPa	65
Elongation at Break	ASTM D638	50mm/min	%	130
Flexural Strength	ASTM D790	2mm/min	MPa	95
Flexural Modulus	ASTM D790	2mm/min	MPa	2400
Notched Izod Impact Strength	ASTM D256	23℃	J/m	800
Thermal Properties
Heat Deflection Temperature (Unannealed)	ASTM D648	1.82MPa; 3.2mm	℃	127
Vicat Softening Point (Unannealed)	ASTM D1525	120℃/h; 50N	℃	148
Optical Properties
Haze	ASTM D1003	3mm	%	--
Light Transmittance	ASTM D1003	3mm	%	88
Processing Parameters
Pre-drying Temperature	-	-	℃	120
Pre-drying Time	-	-	h	5
Injection Molding Temperature	-	-	℃	280–300
Mold Temperature	-	-	℃	80

Version Information

Initial Release Date: October 10, 2019, Version V1.0

1st Revision Date: March 01, 2021, Version V2.0

Revision Reason: Periodic routine update

All specifications and data contained herein are based on our existing technical expertise and practical experience and are for reference only. Binding specifications shall be subject to the Certificate of Quality or supply contract. Purchasers shall conduct independent testing to verify product suitability for intended processing and end-use applications. As downstream processing and application of our products are beyond our control, our liability shall be limited solely to the supplied goods and shall exclude any indirect losses incurred during customers’ subsequent manufacturing using our raw materials. Wanhua’s Marketing Technical Support & Customer Service Center provides technical consultation and application support upon request.
