CLARNATE 2150
Description
Basic Information
| Properties | • Medium viscosity |
|---|---|
| Applications | • General purpose |

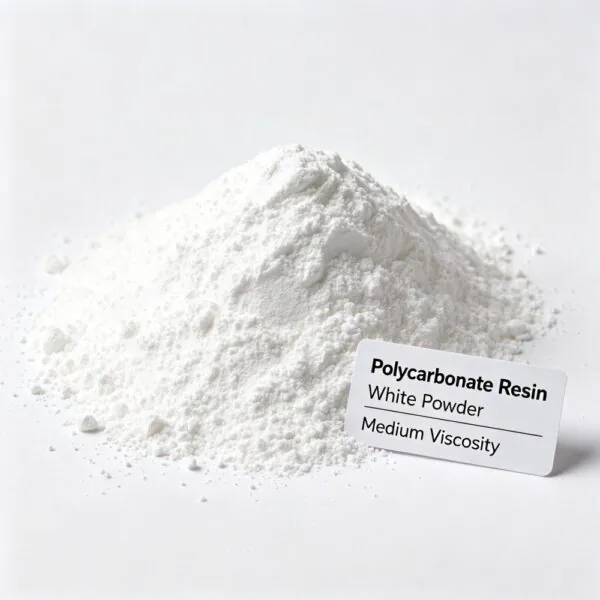

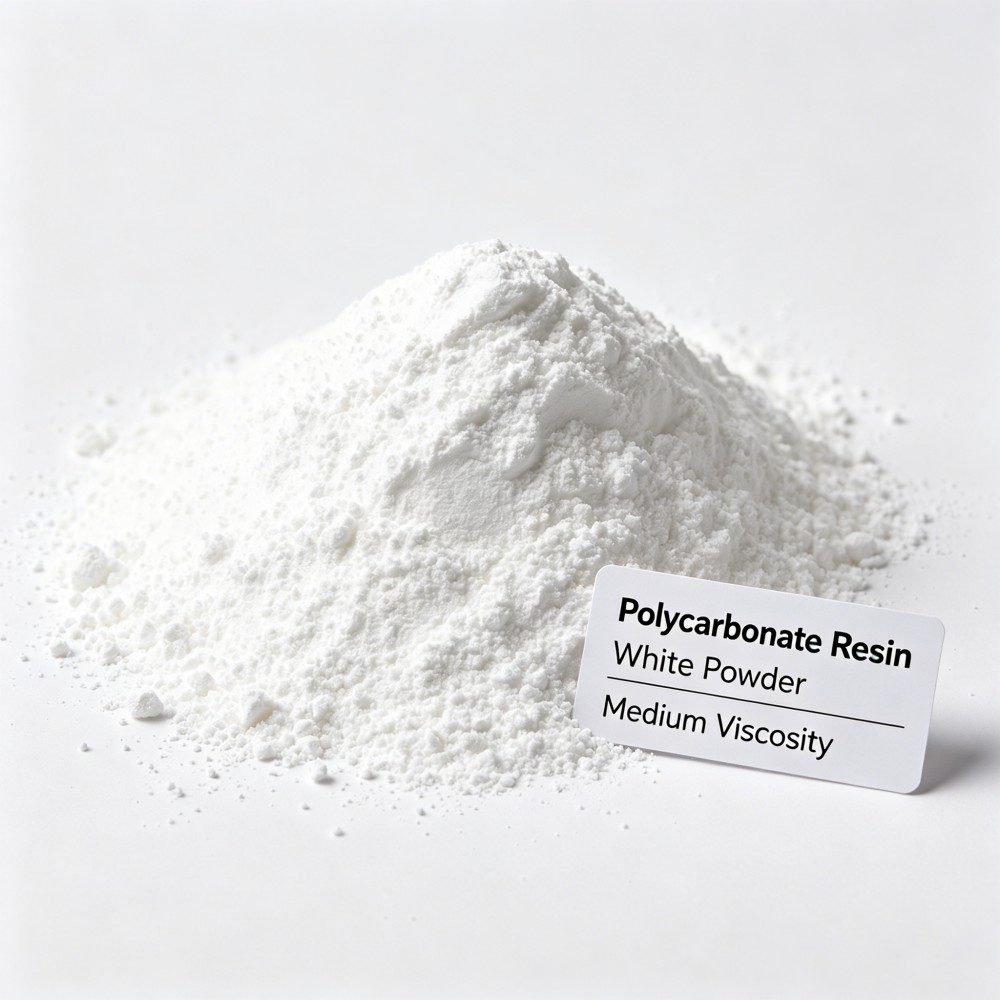

| Appearance | • White powder |
| Processing Method | • Extrusion (blending modification) |
Product Properties
Physical Properties
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Melt Flow Rate | ASTM D1238 | 300℃/1.2 kg | g/10min | 16 |
| Molding Shrinkage | ASTM D955 | — | % | 0.5–0.7 |
| Water Absorption | ASTM D570 | 23℃, 24 h | % | 0.2 |
| Density | ASTM D792 | — | g/cm³ | 1.2 |
Mechanical Properties
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Tensile Strength | ASTM D638 | 50 mm/min | MPa | 70 |
| Tensile Modulus | ASTM D638 | 1 mm/min | MPa | 2300 |
| Yield Stress | ASTM D638 | 50 mm/min | MPa | 65 |
| Yield Strain | ASTM D638 | 50 mm/min | % | 6 |
| Elongation at Break | ASTM D638 | 50 mm/min | % | 120 |
| Flexural Strength | ASTM D790 | 2 mm/min | MPa | 96 |
| Flexural Modulus | ASTM D790 | 2 mm/min | MPa | 2300 |
| Izod Notched Impact Strength | ASTM D256 | 23℃ | J/m | 750 |
Thermal Properties
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Heat Deflection Temperature (Unannealed) | ASTM D648 | 1.82 MPa; 3.2 mm | ℃ | 128 |
| Vicat Softening Point (Unannealed) | ASTM D1525 | 120℃/h; 50 N | ℃ | 148 |
Optical Properties
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Haze | ASTM D1003 | 3 mm | % | <0.8 |
| Light Transmittance | ASTM D1003 | 3 mm | % | 90 |
| Refractive Index | ASTM D542 | — | — | 1.586 |
Combustion Performance
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Flammability Rating | UL 94 | 3 mm | — | HB |
| UL 94 | 1.5 mm | — | V2 |
Electrical Properties
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Relative Permittivity | IEC 60250 | 100 Hz | — | 3.1 |
| IEC 60250 | 1 MHz | — | 3.0 | |
| Dissipation Factor | IEC 60250 | 100 Hz | 10⁻⁴ | 5 |
| IEC 60250 | 1 MHz | 10⁻⁴ | 90 | |
| Volume Resistivity | IEC 60093 | — | Ω·m | 10¹⁴ |
| Surface Resistivity | IEC 60093 | — | Ω | 10¹⁶ |
| Dielectric Strength | IEC 60243-1 | 1 mm | kV/mm | 34 |
| Comparative Tracking Index | IEC 60112 | Solution A | V | 250 |
Processing Conditions
| Item | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Pre-drying Temperature | — | — | ℃ | 120 |
| Pre-drying Time | — | — | h | 5 |
| Injection Molding Temperature | — | — | ℃ | 280–300 |
| Mold Temperature | — | — | ℃ | 80 |
| Injection Speed | — | — | mm/s | 50 |
Version Information
4th Revision Date: March 01, 2021
Version: V 4.0
Reason for Revision: Regular update
