Polyurethane Spray soft foam System, Wanefoam104W

Polyurethane Spray Soft Foam System, Wanefoam104W

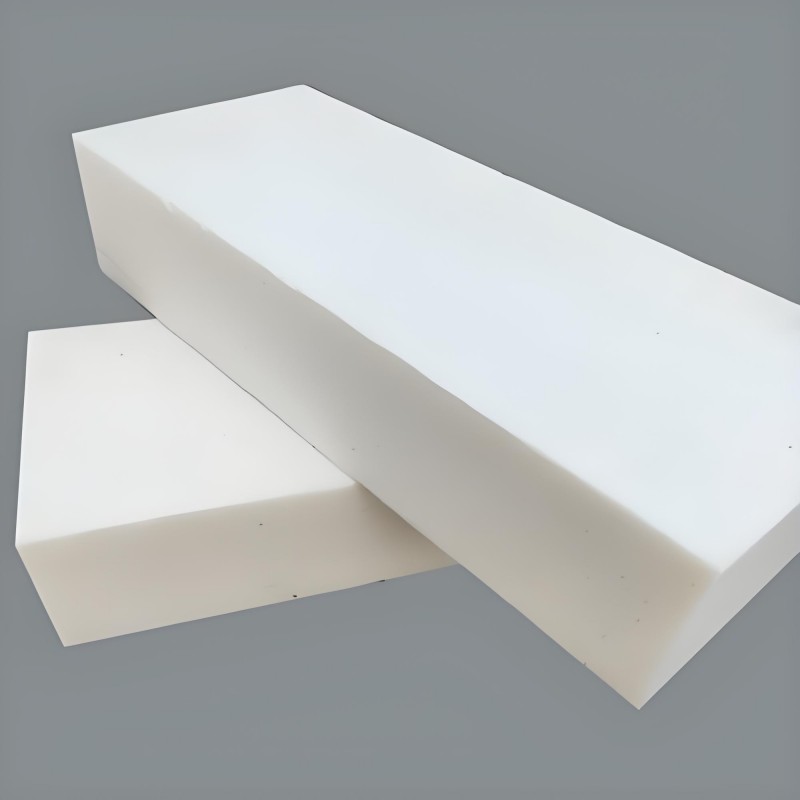

Wanefoam104w is a spray polyurethane soft foam system.It is a white, tasteless, light, porous, foamy solid，is used in the insulation market, mainly for cavity walls, wooden structure cavities, and roofs of buildings

Description

Wanefoam104w is a spray polyurethane soft foam system. It is a white, tasteless, light, porous, foamy solid. They can meet the fireproof requirements of Classification for burning behavior of building materials and products (GB8624). The system is supplied as two reactive liquid components: Component A is a Polymethylene polyphenyl isocyanate(wannate2208), and Component B is a formulated polyol system(wanefoam104w). The blowing agent of Component B is only water. The combustion property of oxygen index of spray soft foam from Component B is 24.5%.

Though flame retardant is added, any use of the Wanefoam104w series in a given application must be tested to make sure it meets the requirements of fire safety and flame retardancy.

Application

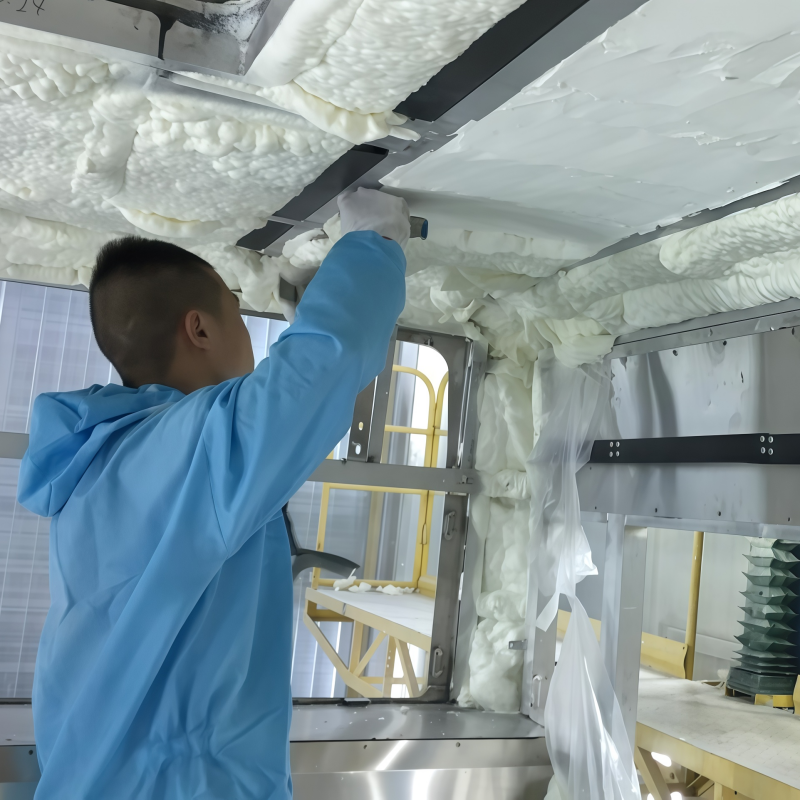

The Wanefoam104w series is used in the insulation market, mainly for cavity walls, wooden structure cavities, and roofs of buildings. The system is fitted to spray on variety basis material surface, such as steel, cement, stone, wood, brick and other materials. Foam has almost no load-bearing capacity.

Package

Green barrel 200kg each
Red barrel 250kg each

Notice

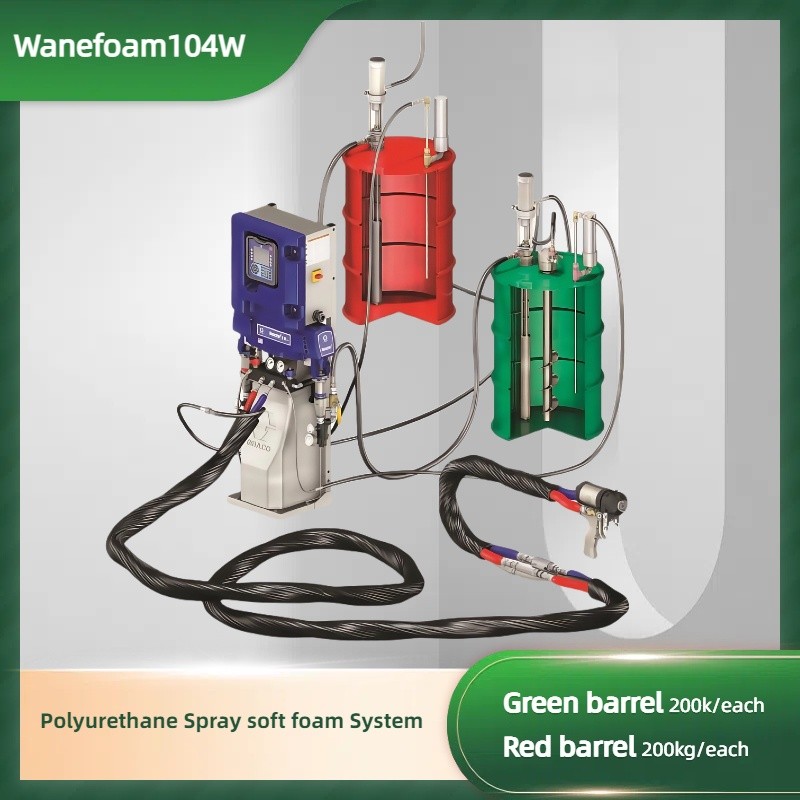

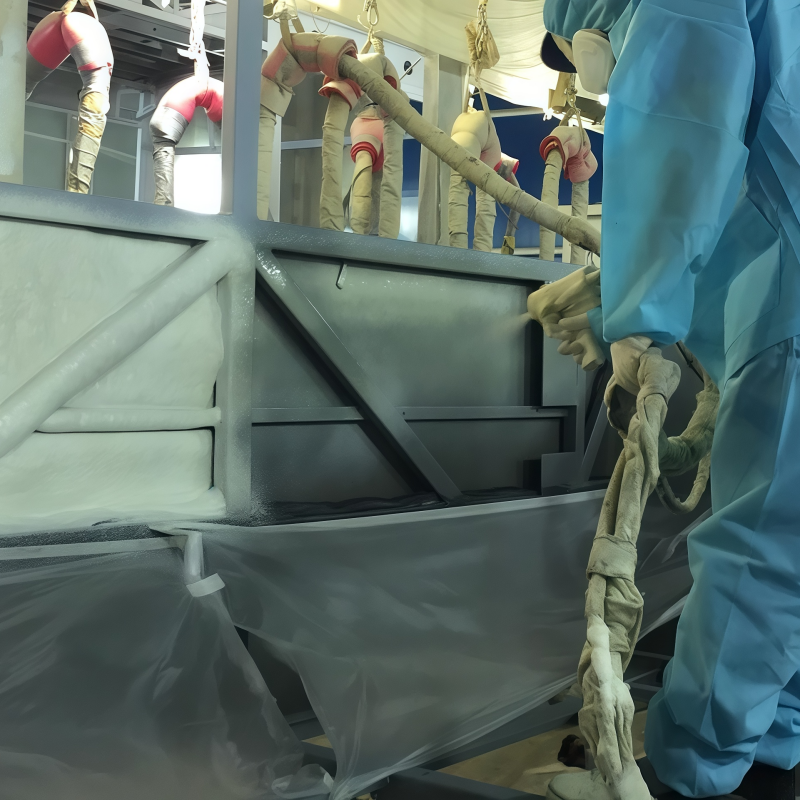

Wanefoam104w series can be processed and sprayed by high-pressure spraying machine. It is essential to have equipment that consistently delivers accurate amounts of both components to the mixed to achieve a production with high-performance.
Appropriate environmental temperature is between 5°C and 40°C, and the wind speed less than 5m/s. The relative humility is less than 75% and working in raining days is not allowed. If environmental temperature is below 10°C, technical measures should be taken to guarantee the quality.
When spraying, the two components should be mixed above 50°C and make sure the wall surface clean.
Thickness of spraying should be made once to meet the required thickness. No fire or smoking is allowed in the construction site. Ventilation is crucial for construction.

Typical Properties of system

Property	Component B	Executive Standard
Viscosity at 25°C, mPa•s	500 – 1500	GB/T12008.8-1992
Specific Gravity at 25°C	1.10±0.10	GB/T4472-1984
Appearance	milky white	Visual Measure

Processing Parameters

Hand Mix Reactivity at 28°C
Cream Time, sec	2-3
Gel Time, sec	5-7
Tack-Free Time, sec	7-10
Free-Rise Density, Kg/m³	7-10
Mixing Rate r/min	2500
Mixing Ratio, Iso/Polyol By volume	1:1
foam structure	Open cell

Processing Conditions

There can be fine differences in the data with the change of different conditions such as the temperature and the environments. For our products, the listed data is not restricted by law.

Storage and Shelf Life

Component B: The polyol component is hygroscopic and containers must be kept closed to prevent absorption of moisture, which can adversely effect processing. Recommended storage temperature is 5 – 35°C. Shelf life is 3 months, when stored in closed containers at 25°C. After 3 months, it still can be used if it is qualified after test.

Safety Considerations

Component B: component B present no significant hazard in use when simple precautions are followed. However, before working with these systems it is necessary to understand the hazards involved and follow safe work procedures.
When working with component B, avoid contact of polyol with eyes or skin. Safety glasses are suggested for use with most polyols. Skin contaminated with component B should be washed with soap and plenty of water. If component B contacts eyes, flush with plenty of low pressure flowing water for 15 mins at least. If irritation occurs from contact with component B, get medical attention. If a polyol is swallowed, give large amounts of water to dilute. Obtain medical attention.

Burning or Explosion Notice

Our products are not in the category of hazardous articles. They are not liquid combustible, explosive, oxidizer, radial or corrosive.
Fire-extinguishing medium:

C O_{2}

,foam fire extinguisher or powder fire extinguisher. Fogattack can also be applied when there is not other extinguisher. Once fire is extinguished, the left liquid should be put away.

Leakage Notice

A spot of leakage or spill of liquid can be washed by water. Massive leakage should be collected and the contaminated surface should be washed by water and detergent. The discarded product should be treated according to the local environmental protection regulations.

Customer Notice

Wahua EnergySav LTD encourages its customers to review their applications of Wanhua EnergySav products from the standpoint of human health and environmental quality. To help ensure that Wanhua EnergySav products are not used in ways for which they were not intended or tested, Wanhua EnergySav personnel are willing to assist in dealing with ecological and product safety considerations. Your Wahua EnergySav representative can arrange the proper contacts.
For more information, please contact our customer service center.
