CLARNATE FR2820T
Description
CLARNATE® FR2820T Polycarbonate Resin
Basic Information
| Item | Content |
|---|---|
| Features | • Medium viscosity • Excellent mold release property |
| Application | • Electrical & electronic components |

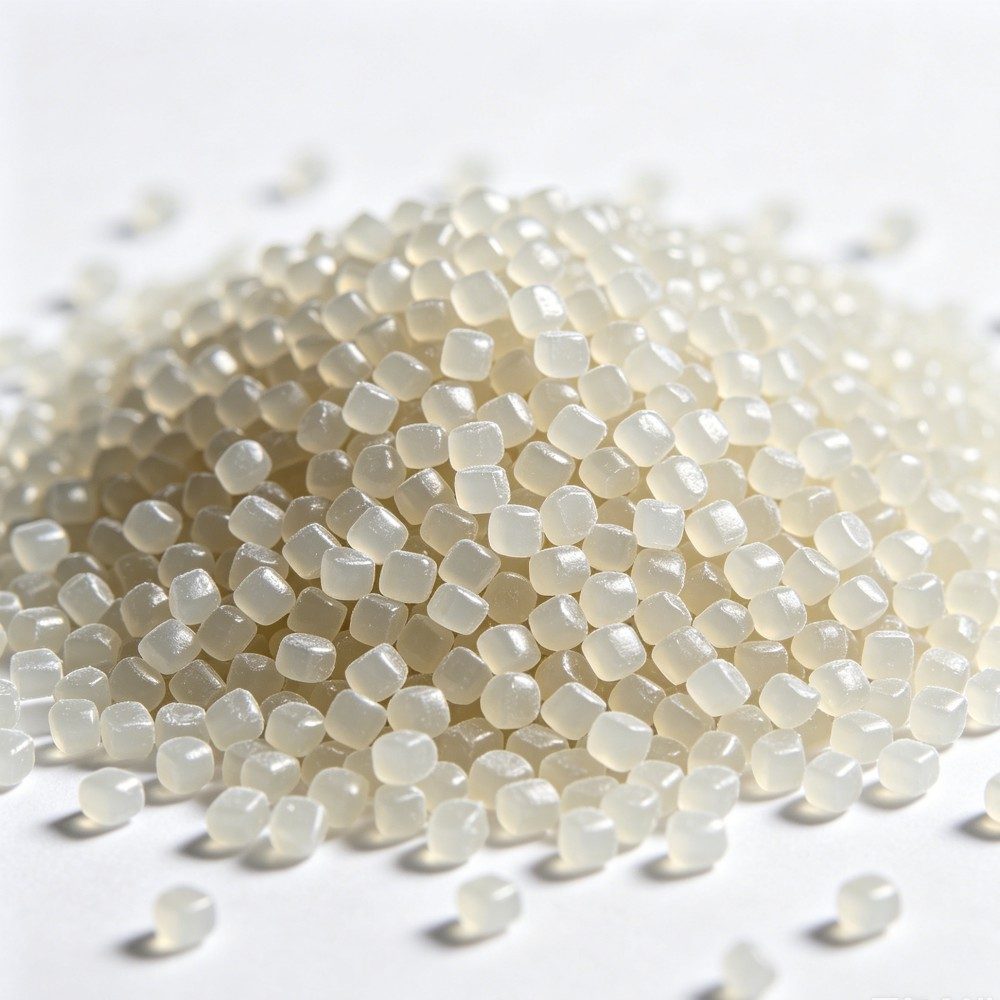

| Form | • Pellet |
| Processing Method | • Injection Molding |
Product Properties
| Property | Test Standard | Test Condition | Unit | Typical Value |
|---|---|---|---|---|
| Physical Properties | ||||
| Melt Flow Rate | ASTM D1238 | 300℃/1.2kg | g/10min | 11 |
| Mold Shrinkage | ASTM D955 | - | % | 0.5–0.7 |
| Water Absorption | ASTM D570 | 23℃, 24h | % | 0.2 |
| Density | ASTM D792 | - | g/cm³ | 1.2 |
| Mechanical Properties | ||||
| Tensile Strength | ASTM D638 | 50mm/min | MPa | 70 |
| Tensile Modulus | ASTM D638 | 1mm/min | MPa | 2250 |
| Yield Stress | ASTM D638 | 50mm/min | MPa | 65 |
| Yield Strain | ASTM D638 | 50mm/min | % | 6 |
| Elongation at Break | ASTM D638 | 50mm/min | % | 100 |
| Flexural Strength | ASTM D790 | 2mm/min | MPa | 95 |
| Flexural Modulus | ASTM D790 | 2mm/min | MPa | 2300 |
| Notched Izod Impact Strength | ASTM D256 | 23℃ | J/m | 650 |
| Thermal Properties | ||||
| Heat Deflection Temperature (Unannealed) | ASTM D648 | 1.82MPa;3.2mm | ℃ | 126 |
| Vicat Softening Point (Unannealed) | ASTM D1525 | 120℃/h;50N | ℃ | 146 |
| Optical Properties | ||||
| Haze | ASTM D1003 | 3mm | % | ＜0.8 |
| Light Transmittance | ASTM D1003 | 3mm | % | 89 |
| Flammability | ||||
| Flammability Rating | UL 94 | 3mm | - | V0 |
| Electrical Properties | ||||
| Volume Resistivity | IEC 60093 | - | Ω·m | 10¹⁴ |
| Surface Resistivity | IEC 60093 | - | Ω | 10¹⁶ |
| Comparative Tracking Index | IEC 60112 | Solution A | V | 225 |
| Processing Conditions | ||||
| Pre-drying Temperature | - | - | ℃ | 120 |
| Pre-drying Time | - | - | h | 3–4 |
| Injection Molding Temperature | - | - | ℃ | 280–310 |
| Mold Temperature | - | - | ℃ | 80 |
Version Information
March 01, 2021, Version V3.0, Revision Reason: Regular periodic update
All specifications and data contained herein are based on our existing technical knowledge and practical experience and are for reference only. Binding specifications shall be subject to the Certificate of Quality or supply contract. Purchasers shall conduct independent testing to verify product suitability for intended processing and end-use applications. As downstream processing and application of our products are beyond our control, our liability shall be limited solely to the supplied goods and shall exclude any indirect losses incurred during customers’ subsequent manufacturing using our raw materials. Wanhua’s Marketing Technical Support & Customer Service Center provides technical consultation and application support upon request.
Company Name: Wanhua Energysav Science&technology Group Co.,Ltd
Address: No. 127, Changjiang Road, YEDA, Yantai, Shandong Province, China
Contact person: Vivin Yi
Email: wanhuachemical@outlook.com
WhatsAPP: +86 17761309662
Tel: +86 17761309662
Wechat: yivonnie
Additional information
| Weight | 25 kg |
|---|
