CLARNATE A1227

CLARNATE® A1227 Polycarbonate Resin

Basic Information

Features	• Low melt viscosity • Excellent mold release property • UV stabilized
Application	• General purpose
Appearance	• Clear / Transparent

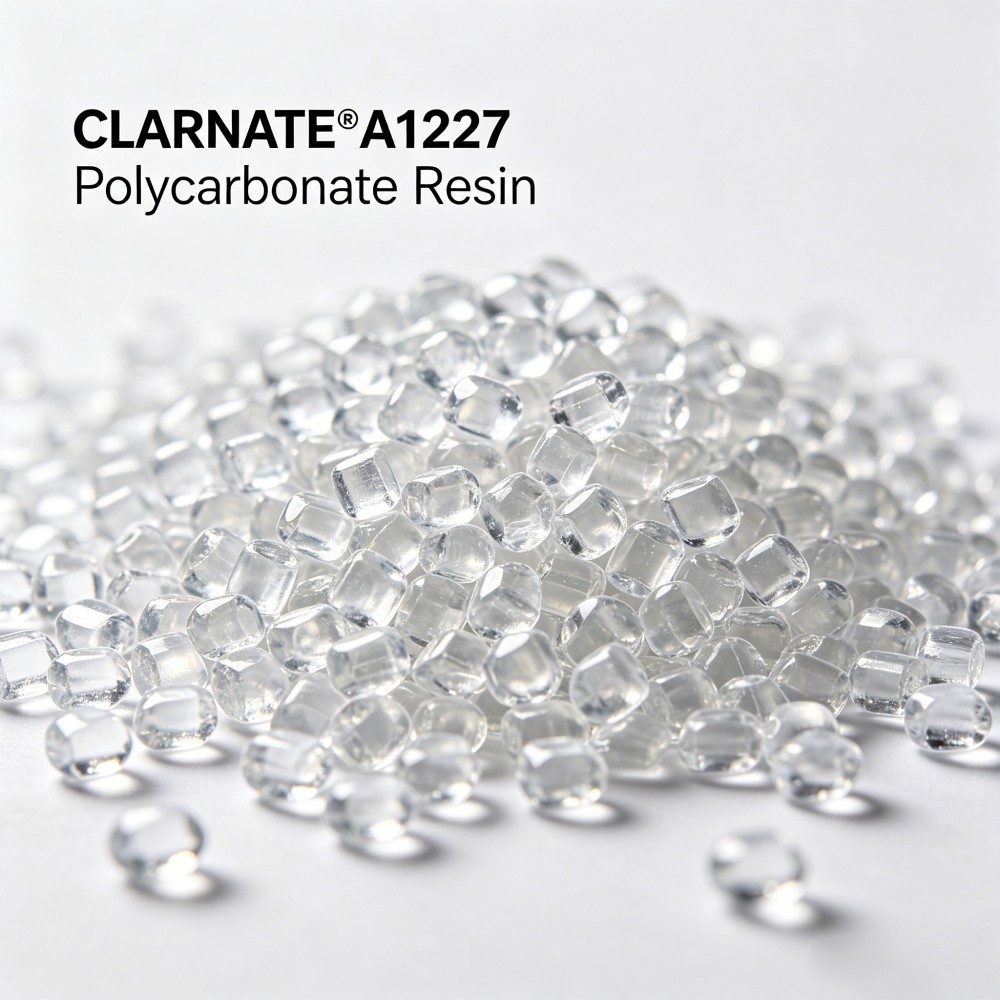

Form	• Pellet
Processing Method	• Injection Molding

Product Properties

Property	Test Standard	Test Condition	Unit	Typical Value
Physical Properties
Melt Flow Rate	ASTM D1238	300℃ / 1.2kg	g/10min	21
Mold Shrinkage	ASTM D955	-	%	0.5–0.7
Water Absorption	ASTM D570	23℃, 24h	%	0.2
Density	ASTM D792	-	g/cm³	1.2
Mechanical Properties
Tensile Strength	ASTM D638	50mm/min	MPa	68
Tensile Modulus	ASTM D638	1mm/min	MPa	2300
Yield Stress	ASTM D638	50mm/min	MPa	65
Yield Strain	ASTM D638	50mm/min	%	6
Elongation at Break	ASTM D638	50mm/min	%	120
Flexural Strength	ASTM D790	2mm/min	MPa	97
Flexural Modulus	ASTM D790	2mm/min	MPa	2300
Notched Izod Impact Strength	ASTM D256	23℃	J/m	650
Thermal Properties
HDT (Unannealed)	ASTM D648	1.82MPa; 3.2mm	℃	127
Vicat Softening Point (Unannealed)	ASTM D1525	120℃/h; 50N	℃	146

Optical Properties
Haze	ASTM D1003	3mm	%	<0.8
Light Transmittance	ASTM D1003	3mm	%	89
Refractive Index	ASTM D542	-	-	1.586
Flammability
UL94 Rating	UL 94	3mm	-	HB
	UL 94	1.5mm	-	V2
Electrical Properties
Relative Permittivity	IEC 60250	100Hz	-	3.1
	IEC 60250	1MHz	-	3.0
Dissipation Factor	IEC 60250	100Hz	10⁻⁴	5
	IEC 60250	1MHz	10⁻⁴	90
Volume Resistivity	IEC 60093	-	Ω·m	10¹⁴
Surface Resistivity	IEC 60093	-	Ω	10¹⁶
Dielectric Strength	IEC 60243-1	1mm	kV/mm	34
Comparative Tracking Index (CTI)	IEC 60112	Solution A	V	250
Processing Parameters
Pre-drying Temperature	—	-	℃	120
Pre-drying Time	—	-	h	5
Injection Barrel Temp.	—	-	℃	270–290
Mold Temperature	—	-	℃	80
Injection Speed	—	-	mm/s	50

Version Revision Record

Mar 01, 2021｜Version: V4.0｜Revision Reason: Regular document update
